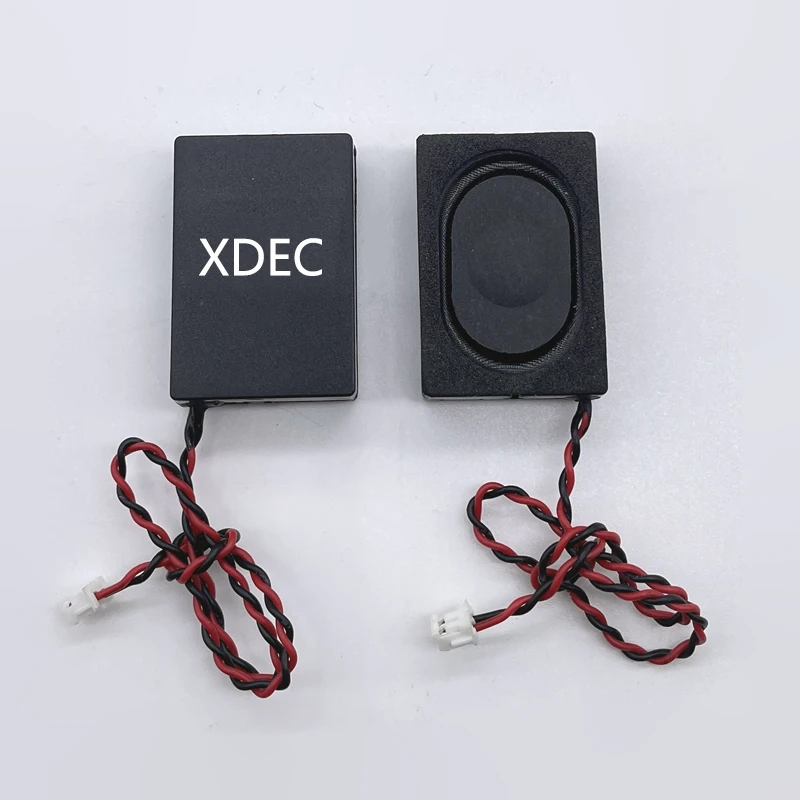

When designing audio systems for projectors, smart displays, and compact electronics, the 20×30mm cavity speaker (音腔喇叭) plays a pivotal role in balancing space constraints with acoustic performance. This guide delves into the XDEC-BOX2030B, a high-performance 20×30mm speaker from Shenzhen XuanDa Electronics (XDEC), tailored for applications demanding rich sound in slim enclosures.
Why Choose a 20×30mm Cavity Speaker?
Cavity speakers integrate a pre-designed acoustic chamber to enhance bass response and minimize distortion, making them ideal for:
Projectors: Space-efficient audio for home theaters and portable models.
LED Displays: Clear voice reproduction in digital signage.
IoT Devices: Smart home hubs, industrial panels.
Key Specifications of XDEC-BOX2030B
| Parameter | Specification | Highlights |
|---|---|---|

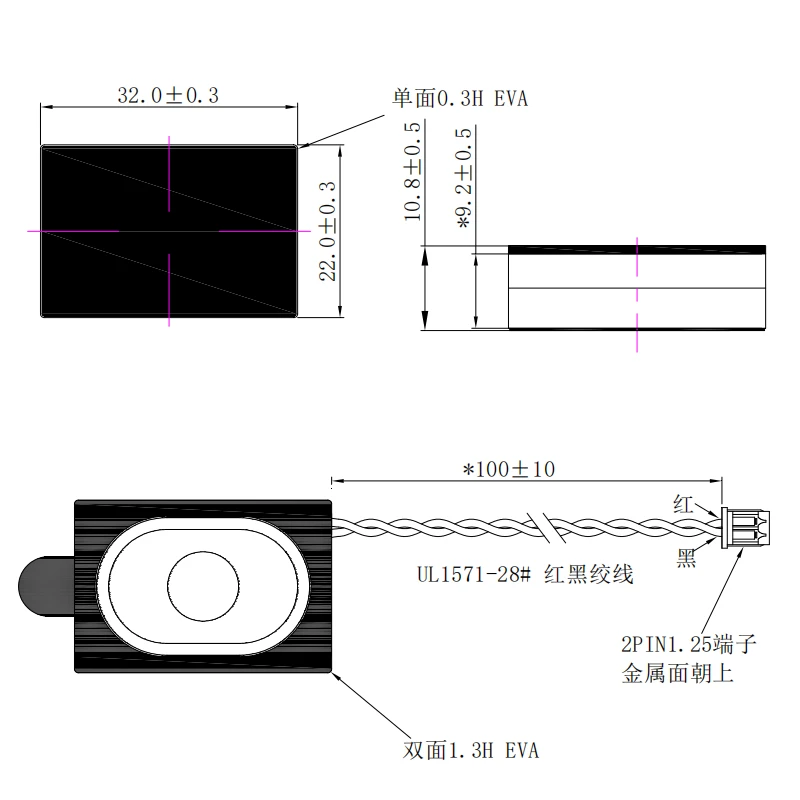

| Dimensions | 32×22×10.8mm (inc. cavity) | Ultra-slim profile for tight spaces |
| Impedance | 8Ω ±15% (DCR: 7.2Ω ±10%) | Optimized for low-power ICs |
| Power Handling | 1.5W (Rated) / 2.0W (Max) | Robust output for small enclosures |
| Frequency Range | 900Hz–14kHz (-10dB) | Balanced mids/highs for vocals |
| Sensitivity | 89±3dB (0.1W/0.1M) | High efficiency for minimal power |
| Resonance (F0) | 900Hz ±20% | Tight bass response |
5 Critical Selection Criteria for 2030 Cavity Speakers
Acoustic Performance
Prioritize sensitivity (≥89dB) and low distortion (<10% THD) for clarity.
The XDEC model's 900Hz resonance frequency ensures punchy mid-bass.
Power & Durability
Verify 2.0W max power and 96hr load test (white noise at 1.5W) for reliability.
Environmental Resilience
Operating range: -25°C to +60°C (storage: -30°C to +70°C).
Humidity resistance: 90–95% RH at 40°C for 24hrs.
Design Integration
10.8mm cavity height fits slim devices.
Polarized terminals (+/- markings) for foolproof assembly.
Certifications & Compliance
RoHS/REACH-compliant materials.
Applications & Customization
Projector Audio: Pair with DSP for virtual surround effects.
Display Backplanes: Vibration-damped mounting for rattle-free operation.
OEM Support: XDEC offers wire length, connector, and cavity tuning adjustments.
Why Trust XDEC?
16+ years in electroacoustic engineering.
Rigorous QC: Slide tests, solder tolerance (350°C/3s), and 100% buzz/rattle inspection.
