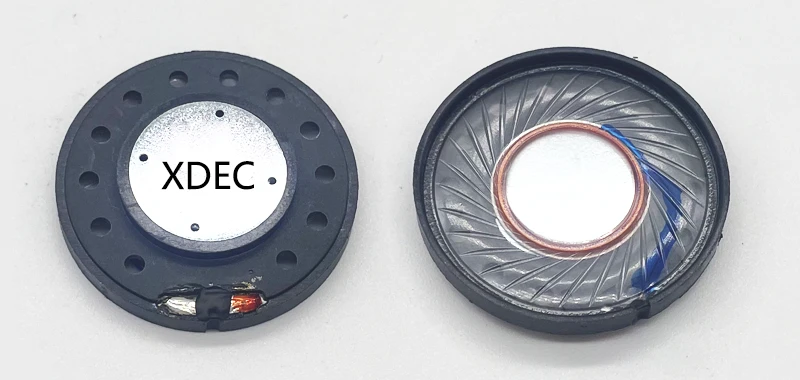

When designing premium headphones or helmet-mounted audio devices, selecting the right 30mm speaker driver is critical for balancing sound quality, durability, and space constraints. This guide analyzes the XDEC-30E, a high-performance 30mm headphone speaker from Shenzhen XuanDa Electronics (XDEC), to help engineers and buyers make informed decisions.
Key Features of the XDEC-30E 30mm Speaker
Compact & Lightweight Design

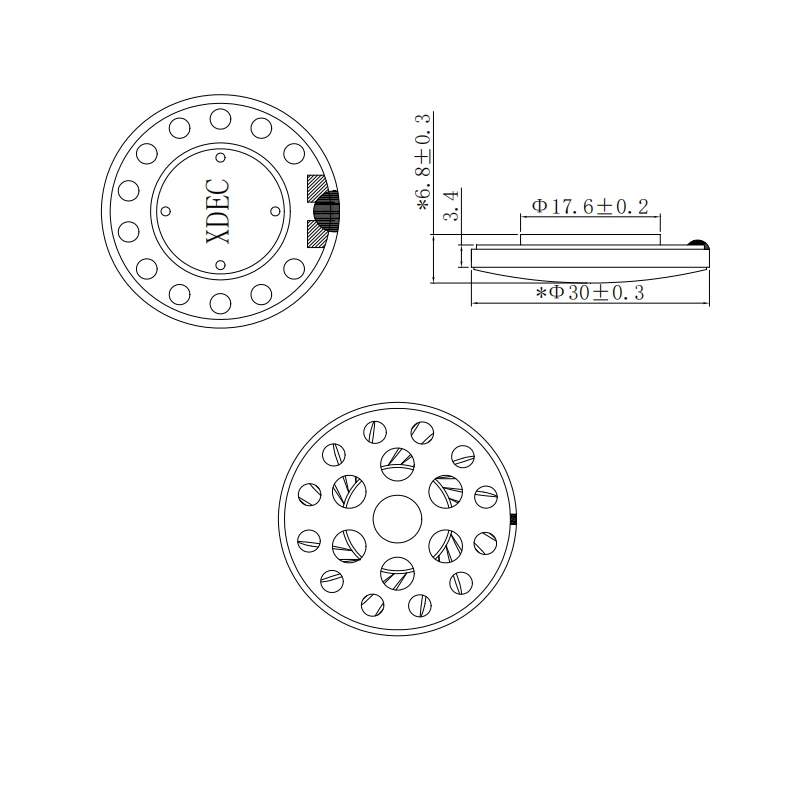

Dimensions: 30mm diameter × 6.8mm thickness (ultra-slim for helmet/headphone integration).
Weight: Optimized for comfort in prolonged wear.
High-Efficiency Audio Performance
Sensitivity: 118±3dB @1kHz/1mW (ideal for low-power Bluetooth modules).
Frequency Range: 150Hz–2kHz (-10dB), emphasizing vocal clarity for calls and podcasts.
Durability for Demanding Environments
Power Handling: 20mW rated / 30mW max (prevents distortion at high volumes).
Environmental Tests:
96-hour white noise load test (20mW, 120Hz–20kHz).
Temperature resistance: -25°C to +60°C operating range.
Easy Integration
Polarity markings for foolproof assembly.
Solder terminals withstand 350°C for 3–5 seconds (compatible with automated production).
Top 5 Considerations When Selecting a 30mm Headphone Speaker
Impedance Matching
The XDEC model's 32Ω±15% impedance suits most portable audio ICs.
Acoustic Tuning Potential
Low resonance frequency (150Hz±20%) enhances bass response for music-centric applications.
Long-Term Reliability
Verify humidity resistance (90–95% RH at 40°C for 24 hours) for sports/outdoor use.
Regulatory Compliance
Ensure RoHS/REACH certifications for global markets.
OEM Customization
XDEC offers wire length, connector type, and damping material adjustments.
Why This 30mm Driver Stands Out for Helmet Audio Systems
High Sensitivity (118dB): Ensures clear audio even in noisy environments (e.g., motorcycle riding).
Slim Profile: Fits helmet ear pads without compromising comfort.
Tested Durability: Survives vibration, temperature swings, and moisture exposure.
For projects requiring 30mm helmet speakers or headphone drivers, the XDEC-30E provides a proven blend of performance and ruggedness. Contact XDEC for datasheets and samples to validate its fit for your design.
