Mylar Speaker Driver
Your Professional Mylar Speaker Driver Supplier
Shenzhen Xuanda Electronics Co., Ltd(XDEC). was established in 2009 and is a comprehensive audio company integrating research and development, production, and sales. Our products include: speakers, microphones, and other audio products, widely applied to fields such as headphones, walkie-talkies, learning machines, reading pens, projectors, smart home devices, laptops, phones, DVD players, medical equipment, navigation devices, security systems, cars, and audio equipment.
Why Choose Us
The Research Development Strength
XDEC R&D center utilizes advanced testing equipment (LMS,SOUNDCHECK, CR6151) and a GB6882-compliant anechoic chamber to ensure accurate product development.
Our Certifications
We are ISO 9001, IATF 16949, and ISO 14001 certified, employing advanced testing equipment (laser holographic, drumhead, and film testing instruments) for rigorous quality control throughout the entire process, from raw materials (MIL-STD-105E II sampling) to finished products.
Rich Experience
Our r&d and qc engineer have more than 10 years experience management team.
Foreign trade market
We have been exporting to many countries, including southeast Asia, Europe, North Ameria and South America.

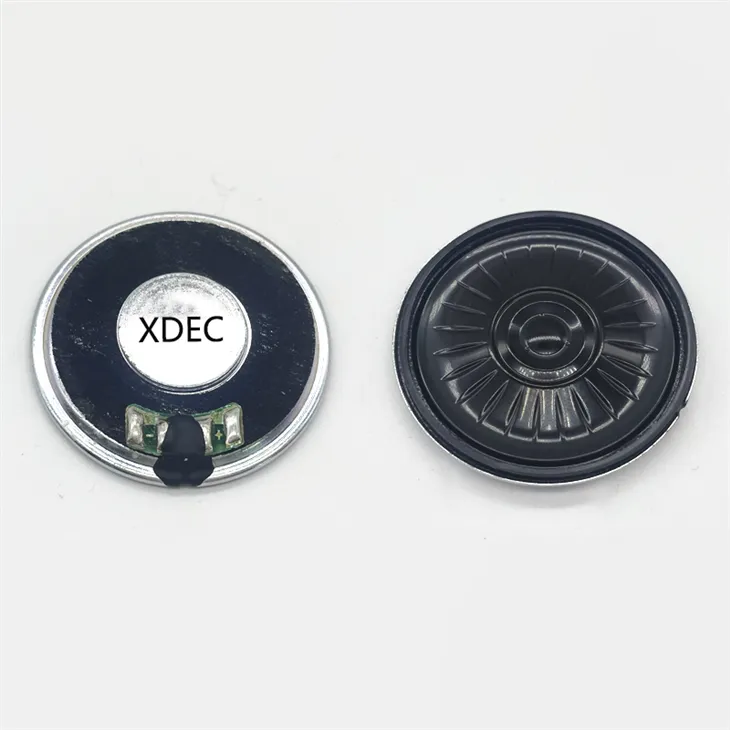

Mylar Speaker Driver Specifications
|
Product Name |
Mylar Speaker Driver |
|
Type |
Dynamic speaker |
|
Out Side Size |
Ф22.5*H7.8 mm |
|
Impedance |
8Ω±20% at 1 KHz 2.0Vms Sine Wave |
|
Resonance Frequency |
1200±20% Hz at 2.0V Sine wave |
|
Storage Temperature |
- 40℃ ～ +60℃ |
|
Rated Current |
Max.30mA ,at 2700Hz 50% duty Square Wave 3Vo-p |
|
Sound Output at 10cm |
74dB ±3dB at 0.5w/ 0.1m / 10.12.15.×100Hz average |
|
Tone Nature |
Constant |
|
Frequency Range |
Fo 900~ 4kHz |
|
Operating Temperature |
- 30℃ ～ +60℃ |
|
Unit Weight |
2.0g |
Key Features
Low distortion
Mylar speakers produce low-frequency sounds with minimal distortion. They also maintain their sound quality at high volumes.
Power handling
Mylar speakers drivers can handle powerful audio signals without damage.
Magnet structure
Mylar magnet structures vary. Some Mylar speaker voice coils have ferrite magnets, while others have neodymium.
Size
Sizes vary with types. Mylar cone drivers measure between 3 and 8 inches, while tweeters can be as small as 1 inch.
Types of Mylar Speaker Drivers Available
Planar magnetic driver
The diaphragm's film has a series of long, thin magnetic ribbons. These ribbons move back and forth to produce sound when current flows through them.
Hybrid driver
Hybrid drivers combine attributes of both planar magnetic and traditional cone drivers.
Ribbon driver
In this case, the diaphragm is a long and narrow metal ribbon. The belt of a ribbon driver vibrates to push the air, producing sound.
Applications
Car stereos and speakers
Car stereos use Mylar speaker drivers to give a well-balanced and compact sound.
Professional audio equipment
Mylar speaker drivers are used for professional audio devices like subwoofers and midrange drivers.
Surround sound systems
Surround sound relies on multiple small Mylar driver speakers that create a realistic listening environment by giving distinct audio cues.
Paging systems
Most public addressing or paging systems use Mylar speaker drivers. Their clarity and reliability in producing high-pitched tones make them ideal for such applications.
Shipping
We offer various delivery methods including express courier, land transportation, sea freight, and air freight.The specific delivery method will be determined based on your requirements, order volume, and the delivery destination.
Our Certificates
FAQ
We're well-known as one of the leading mylar speaker driver manufacturers in China. If you're going to wholesale high quality mylar speaker driver made in China, welcome to get free sample from our factory. Also, customized service is available.
