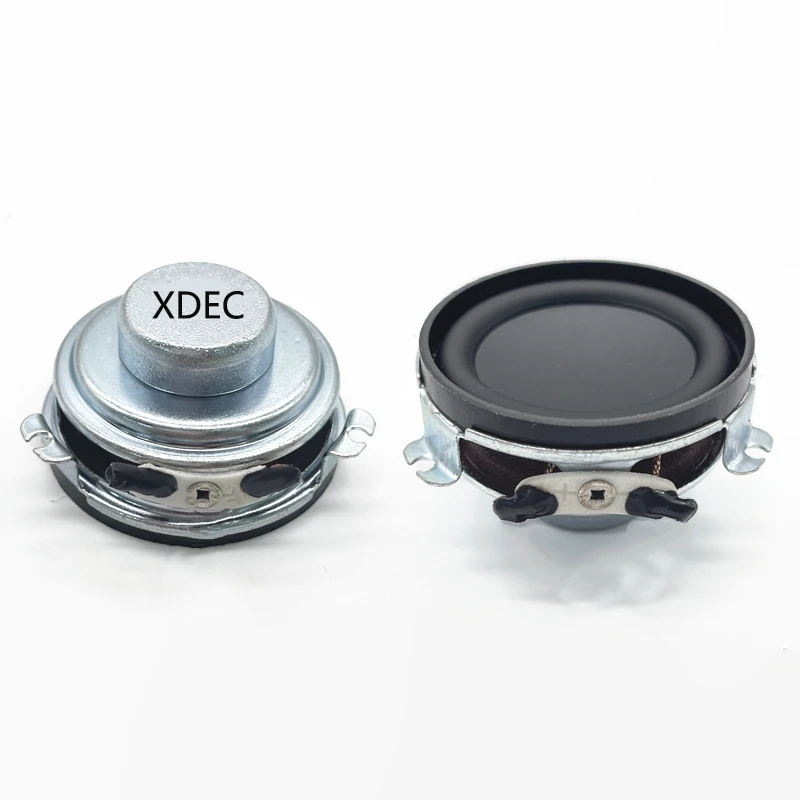

40mm Neodymium Multimedia Speaker Driver
Smart Speaker / Bluetooth Speaker / Soundbar
4 Common Pitfalls When Sourcing 40mm Speaker Drivers
Engineers and buyers building smart speakers and Bluetooth speakers run into these every week
❌ Pitfall 1: High F0 makes voice sound "muddy"
Many off-the-shelf 40mm drivers sit at 280~350Hz F0, so voice playback sounds muffled and far-field wake-word accuracy drops noticeably.
→ Choose F0 ≤ 220Hz drivers for clear vocal response
❌ Pitfall 2: Inflated sensitivity ratings
Some factories claim 88dB but measure 78dB in practice, so far-field wake at 3-5m fails and the product gets returned.
→ Ask for a 0.5W/0.5M actual test report
❌ Pitfall 3: Poor SPL matching between L/R channels
Soundbar and stereo pair products are highly sensitive to >±3dB channel mismatch, leading to skewed soundstage and rework.
→ Require ±1dB matched-pair sorting at the source
❌ Pitfall 4: Narrow operating temperature range
Standard drivers rated -10℃~+50℃ can delaminate in summer car interiors and crack in cold winters, driving up RMA costs.
→ Specify -25℃~+60℃ or wider operating range
Driver Specifications (Real Values from XDEC Datasheet)
All values are pulled directly from the production xlsx - no rounding, no inflation
| Parameter | Value |
|---|---|
| Model Number | XDEC-40Y04T24NC08-D50 |
| Series / Type | Series Y · Neodymium Multimedia Driver |
| Dimensions | 46.7mm × 21.5mm (rectangular) |
| Nominal Impedance | 4.0 Ω |
| Rated Power | 3W |
| Maximum Power | 4W |
| Sensitivity (SPL) | 83 ± 3 dB (1W/1M, swept sine) |
| Resonance Frequency (F0) | 200 Hz |
| Frequency Response | F0 ~ 20 kHz |
| Total Harmonic Distortion | ≤ 10% Max (across rated band) |
| Polarity | Positive (+) |
| Operating Temperature | -30 ℃ ~ +70 ℃ |
| Storage Temperature | -30 ℃ ~ +70 ℃ |
| Load Test (White Noise) | 3W / 160Hz~20kHz / 96 hours, normal after test |
| Humidity Test | +40℃ / 90~95% RH / 24h, recover 2h, normal |
Dimension Drawing & Frequency Response Curve
Full engineering drawing + measured FR curve shipped with every batch

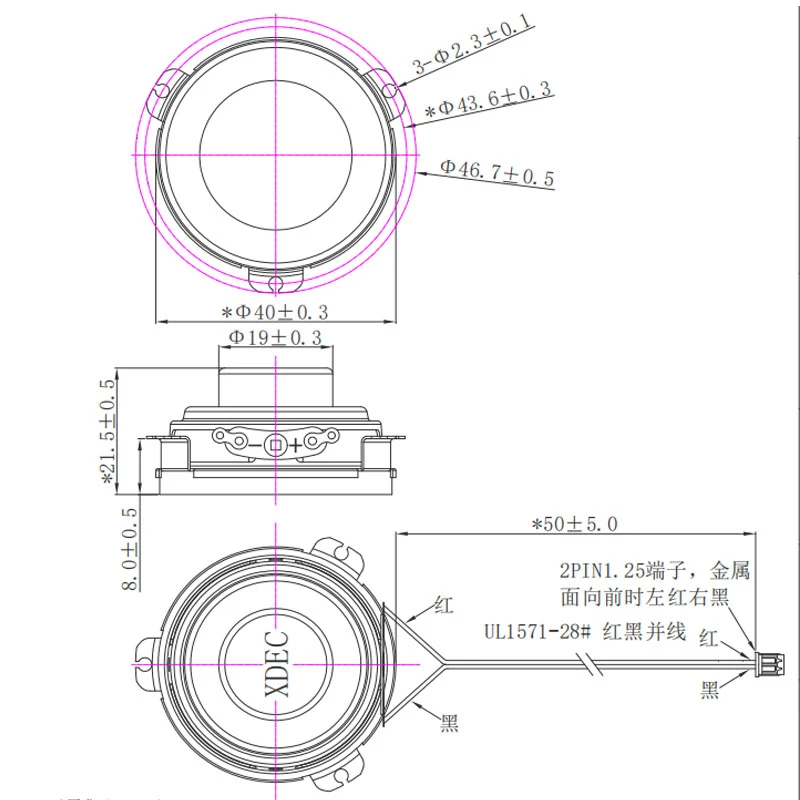

Dimension Drawing / Outline
Frequency Response / SPL Curve
Why Engineers Choose This 40mm Multimedia Driver
Six engineering decisions baked into every unit of this Series Y driver
200Hz Low F0 for Deeper Bass
Lower resonance delivers fuller vocals and stable far-field wake performance
83dB Real-World Sensitivity
Tested under 1W/1M, sorted ±1dB for reliable 3-meter far-field activation
46.7×21.5mm Rectangular Footprint
Saves ~25% horizontal space vs round 40mm drivers; ideal for ultra-slim enclosures
-30℃~+70℃ Wide Thermal Range
Stable in automotive, outdoor, and cold-chain deployments; lower RMA rates
50M Units / Month Capacity
17 years of dedicated neodymium driver lines; bulk orders ship within 15 days
±1dB Matched-Pair Sorting
Tight L/R matching for soundbars and stereo pairs; no on-site re-tuning required
Typical Applications
From consumer electronics to automotive voice modules, this 40mm driver covers 6 mainstream use cases
Smart Speakers (Primary)
Far-field voice + music playback
Bluetooth Speakers
Portable, outdoor, party audio
Soundbars & TV Audio
2.0/2.1 channel home theater
Smart Home Control Panels
Voice wall panels, smart switches
Automotive Voice Modules
In-car navigation, voice HMI
EdTech & AI Robots
Kids companions, learning pens
XDEC 40mm Neodymium Driver vs Generic 40mm Drivers
| Specification | XDEC 40mm Series Y | Generic 40mm Drivers |
|---|---|---|
| Resonance Frequency (F0) | 200Hz Low F0 | 280~350Hz |
| SPL Sorting | ±1dB matched pairs | ±3dB unsorted |
| Operating Temperature | -30℃ ~ +70℃ | -10℃ ~ +50℃ |
| Load Test Duration | 3W / 96 hours | 24~48 hours |
| Certifications | ISO9001 + IATF16949 | Basic ISO only |
| MOQ Flexibility | 500 trial / 3,000 bulk / 10,000 custom | 5,000 minimum |
Factory Capability & Cooperation Policy
Shenzhen Xuanda Electronics Co., Ltd. · 17 years of micro-speaker R&D and manufacturing
17 Years of Manufacturing
Founded 2009, 7 product lines
ISO9001 + IATF16949
QMS + automotive supply chain
24h Selection / 15-Day Bulk
Spec proposals in 24h, custom review in 48h
Flexible MOQ Tiers
500 trial / 3,000 bulk / 10,000 custom
Export to 30+ Countries
EU, US, SE Asia, Middle East coverage
Full-Service OEM / ODM
Spec tuning, tooling, mass production
40mm Multimedia Driver - Frequently Asked Questions
6 questions buyers and engineers ask before placing a PO
Q1: How does this 40mm multimedia driver perform in a smart speaker?
A: 200Hz low F0 plus 83dB sensitivity delivers clear vocal reproduction and reliable far-field wake; F0~20kHz bandwidth covers both voice assistant and music use cases. The 46.7×21.5mm rectangular footprint saves horizontal space and fits ultra-slim enclosures.
Q2: What's the MOQ and lead time?
A: 500 units for trial, 3,000 units for standard orders, 10,000 units for full custom. Standard parts ship in 3-5 days, custom builds in 15-20 days. Spec proposals arrive within 24 hours, datasheet reviews within 48 hours.
Q3: What does "sensitivity sorting" mean? How is L/R channel consistency guaranteed?
A: Drivers are factory-sorted into ±1dB SPL bins so soundbar and stereo-pair customers can drop them in directly without on-site re-balancing. Bulk orders include bin labels and incoming-inspection test data on request.
Q4: Can you customize impedance, power, or wire harness?
A: Yes - full OEM/ODM support. Impedance (4Ω/8Ω/16Ω/32Ω), power (1W~5W), lead wires (PH/XH/USB-C), and waterproofing (IPX4~IPX7) are all configurable. Custom proposals arrive within 48 hours.
Q5: Is 10% THD Max acceptable for voice and music applications?
A: 10% Max is the worst-case limit across the full F0~20kHz band; typical measured THD runs under 3% for voice and under 5% for music. XDEC inspects 100% of production and ships measurement data with each batch.
Q6: How do I contact XDEC for a datasheet or sample?
A: Email xd12@xdec.cn for 1-4 free samples (freight collect); datasheets ship within 24 hours. Tel 0755-27739805 / 27739815; sales director Li Guodong +86 13620938545.
Get Your 40mm Multimedia Driver Sample Today
24h spec proposal ｜ 1-4 free samples ｜ Standard parts ship in 3-5 days
Shenzhen Xuanda Electronics Co., Ltd. (XDEC) · Founded 2009 · 17 years of micro-speaker R&D and manufacturing
