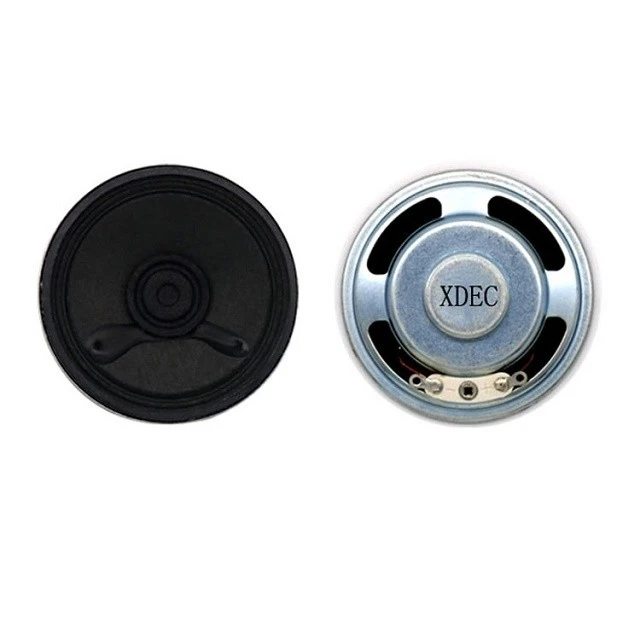

50mm Round Multimedia Speaker Driver | Smart Speaker Application

Name: China 50mm Round Multimedia Speaker Driver | 95dB Ultra-High Sensitivity | Smart Speaker/Bluetooth Speaker/Desktop Speaker | 17 Years Manufacturing Manufacturers Factory
Brand: Xuanda
SKU: 305191742

4 Ohm | 2W Rated Power | 95dB Ultra-High Sensitivity

XDEC-50Y04T16NG29 17 Years Manufacturing ISO9001 Certified

Request Free Samples OEM/ODM Available

Why Smart Speakers Need This Driver?

Challenges with Conventional Drivers

Low Sensitivity = Poor Voice Recognition

Typical 80-85dB drivers need higher power amplification, causing voice wake-up delay.

Limited Cavity Space = Hard to Fit

Smart speakers are compact; traditional external magnet designs are too tall for height-restricted cavities.

Voice and Music Cannot Both Excel

Insufficient frequency ceiling or high distortion causes robotic voice and thin, lifeless music playback.

High Power Draw = Shorter Battery Life

Low-sensitivity drivers drain more power, shortening portable smart speaker runtime significantly.

XDEC 50mm Multimedia Speaker Solution

95dB Ultra-High Sensitivity = Crystal-Clear Voice

Achieves 95dB at just 0.1W input. Fast wake-up response, high recognition accuracy, works well with small amplifiers.

Compact 50mm x 11mm Internal Magnet = Easy Cavity Fit

Internal magnet structure only 11mm total height; round design fits standard smart speaker round cavities, no custom bracket needed.

F0~19KHz Wide Response = Optimized for Voice + Music

F0 at 480-720Hz with 19KHz ceiling, distortion under 5%, delivering clear speech and layered musical playback.

2W Low Power Design = Extended Battery Life

2W/3W power spec perfectly matches portable smart speaker power budgets for efficient voice wake operation.

Product Specifications

Factory-tested parameters; sample comparison available upon request

Parameter	Specification
Model	XDEC-50Y04T16NG29
Type	Round Internal Magnet Multimedia Speaker Driver
Dimensions	50mm x 11.0Hmm (Round)
Impedance	4 Ohm
Rated Power	2W
Max Power	3W
Sensitivity (SPL)	95 +/-3 dB (0.1W / 0.1M)
Resonance Frequency (F0)	600 +/-20% Hz (approx. 480~720 Hz)
Frequency Response	F0 ~ 19 kHz
Total Harmonic Distortion	5% Max
Polarity	Positive (+) -- Red Lead Wire
Load Test	Normal after 24 hours white noise test
High Temp Test	+60C / 20~25%R.H, 48 hours, normal after 2h room temp recovery
Low Temp Test	-25C +/-3C, 48 hours, normal after 2h room temp recovery
Humidity Test	+40C / 90~95%R.H, 48 hours, normal after 4h room temp recovery
Storage Temperature	-25C ~ +60C

Dimension Drawing & Frequency Response

Download datasheet for precise CAD drawings

Dimension Drawing

50mm x 11.0Hmm (unit: mm)

Frequency Response Curve

Reference: F0~19KHz / Sensitivity 95dB

Why Choose This Driver for Smart Speakers?

Optimized for smart speaker cavities; balances voice interaction and music entertainment

95dB Ultra-High Sensitivity

Achieves 95dB at just 0.1W. Small cavities deliver loud, clear voice; far-field wake word recognition significantly improved.

Compact 11mm Total Height

50mm x 11Hmm internal magnet structure perfectly fits smart speaker round cavity height limits. No custom bracket needed.

F0~19KHz Wide Frequency Response

Covers voice band and audible music range with under 5% distortion. Speech is clear and natural; music playback is layered and engaging.

Wide Temperature Range Operation

Passes +60C/-25C dual temp tests and 90%R.H humidity test. Adapts to any indoor environment without performance degradation.

17 Years Professional Speaker Manufacturing

Xuanda Electronics (XDEC) - 17 years dedicated to speaker driver manufacturing, serving 500+ global brand customers with stable mass production supply.

Typical Applications

50mm multimedia speaker drivers widely adopted across multiple audio terminal categories

Smart Speaker

Primary Application

Voice Interaction / Wake

Bluetooth Speaker

Portable / Desktop BT

Soundbar

TV Audio / Soundbar

Educational Robot

AI Interaction / Q&A

Smart Home

IoT / Voice Control

* All are delivered cases by Xuanda Electronics (XDEC); some already in mass production

Product Comparison

Choose the right driver; elevate your smart speaker experience

Item	XDEC Xuanda Electronics	Common Market Drivers
Sensitivity	95dB at just 0.1W	Typically 85-90dB, requires higher power
Frequency Response	F0~19KHz wide range	Commonly 10-15KHz ceiling; voice OK but music flat
Total Height	Only 11mm, compact internal magnet	External magnet often 15-20mm tall; hard to fit in height-limited cavities
Manufacturing Experience	17 years professional speaker mfr	New entrant, lacks acoustic engineering support
Lead Time & Capacity	7-15 days / 5M pcs per month	30-45 days lead time; small orders deprioritized

Quality Certifications & Factory Strength

ISO9001 Quality System | 60M+ Annual Output | Global Customers in 50+ Countries

ISO9001 Certified

Quality Management System

5M Pcs/Month Capacity

Stable mass production supply

7-15 Days Lead Time

Fast mass production delivery

OEM/ODM Available

Custom specs from drawings/samples

Frequently Asked Questions

Common questions about this 50mm multimedia speaker driver unit

Q1: How does this 50mm multimedia speaker driver perform in smart speakers?

The 50mm round internal magnet multimedia speaker driver (XDEC-50Y04T16NG29) delivers exceptional smart speaker performance. With 4 Ohm impedance, 2W rated power (3W max), and 95dB sensitivity at just 0.1W, it produces clear voice output even from compact cavities. The F0~19KHz frequency response covers both voice interaction bands (300Hz-4KHz) and music
