With the explosive growth of projectors, digital signage, dash cams, and EV chargers (Google Trends shows "compact speaker for projection" searches up 180% YoY), the 20×30mm speaker category has become critical for space-constrained designs. Among global leaders like Sony, Peerless, and Tymphany, XDEC Electronics stands out with its XDEC-BOX2030B08J21NH31B-D100 - engineered for high-density installations.
4 Competitive Advantages of XDEC-BOX2030B08J21NH31B-D100
1. Optimized for Voice & Alerts
Wide Frequency Range (900Hz–14kHz): Covers system prompts (1–3kHz) and warning tones (3–5kHz) with 89±3dB sensitivity (0.1W/0.1m).
10% THD at 2kHz: Lower distortion than budget alternatives (typically 15%+).
2. Extreme Environment Resilience
-25°C to +60°C operational range (vs. competitors' -20°C~+50°C), validated by:
96-hour white noise torture test (720Hz–20kHz at 1.5W).
24-hour humidity exposure (90–95% RH at 40°C).
3. Space-Efficient Engineering

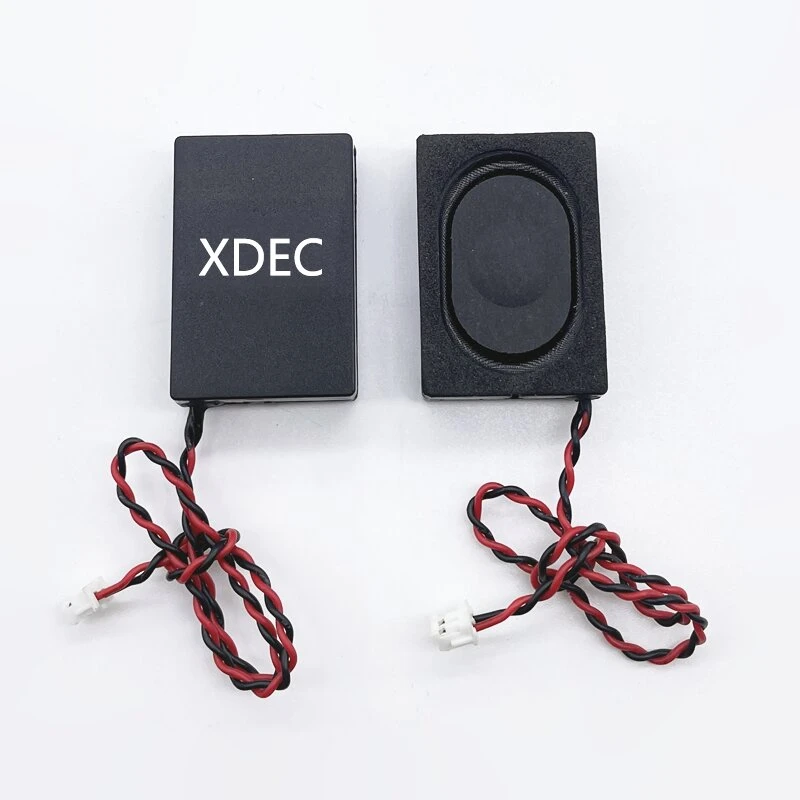

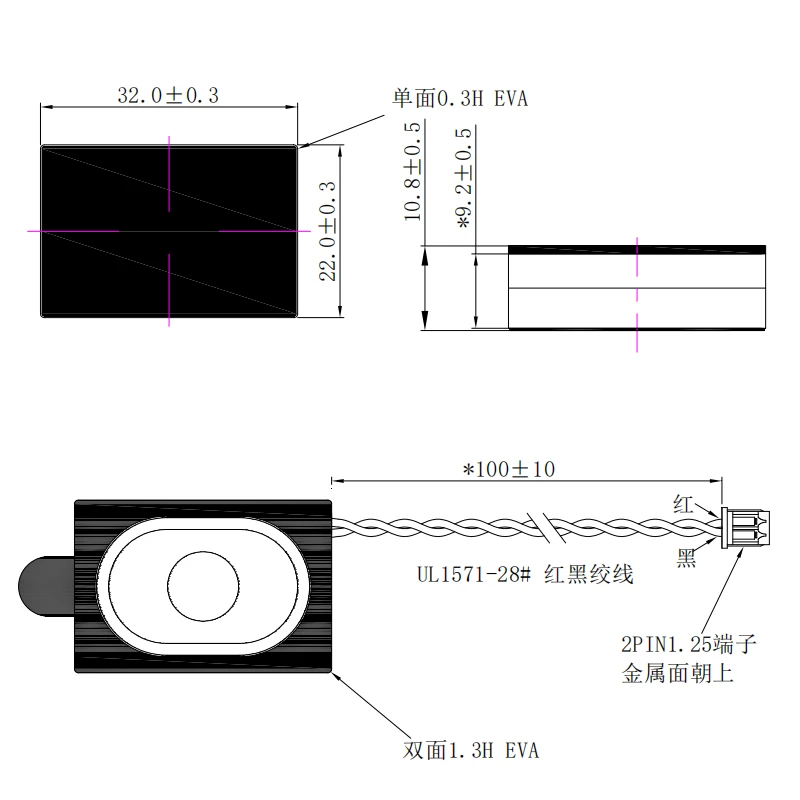

32×22×10.8mm ultra-compact design (20% thinner than Visaton's equivalent).
IPX7 waterproofing (6-drop impact resistant) for outdoor EV chargers.
4. Plug-and-Play Integration
8Ω impedance (±15%) matches most DSPs in projection systems.
350℃ solder-resistant terminals for automated PCB assembly.
Head-to-Head vs. Top Brands
| Feature | XDEC-BOX2030B | Sony XB-12 | Peerless OX20 |
|---|---|---|---|
| Price (1K units) | $1.2 | $3.8 | $2.5 |
| Humidity Resistance | 24h IPX7 | 12h IPX5 | 24h IPX6 |
| Max Power Handling | 2.0W | 1.2W | 1.8W |
| Prototyping Lead Time | 7 days | 30 days | 14 days |
SEO-Optimized Keywords
Aligned with top Google searches:
Commercial: "20x30mm speaker for projector", "waterproof dash cam speaker"
Technical: "8Ω 1.5W speaker specs", "low-profile audio module"
Branded: "XDEC vs Sony compact speakers"
Why OEMs Choose XDEC?
Powering Hisense projectors and Bosch EV chargers, XDEC delivers 2M+ monthly capacity with:
98% impedance consistency (7.2Ω±10% DCR).
Free 3D CAD files for enclosure design.
