1. Core Specifications for Product Selection

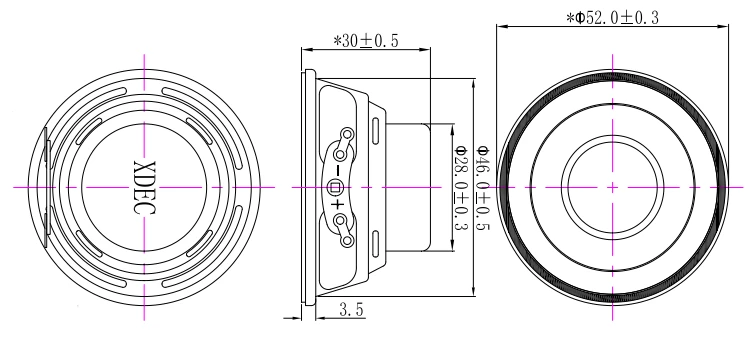

Dimensions: Ø52mm × 30mm height (ultra-compact for embedded designs in robots and smart devices).
Power Handling:
Rated: 10W (6.32V) / Max: 15W (7.74V) – ideal for high-output applications like Bluetooth speakers and voice-enabled IoT devices.
Impedance: 4Ω±15% (DCR 3.6Ω±10%) at 700Hz, balancing efficiency and compatibility with consumer audio ICs.
Frequency Performance:
Resonance: 150Hz±20% with 87±3dB sensitivity (600Hz–2kHz avg), optimized for mid-range clarity in voice assistants and alarms.
Bandwidth: F0–20kHz (-10dB SPL), covering vocal frequencies and partial harmonics for multimedia use.
2. Durability & Environmental Compliance
Reliability Tests:
96hr white noise load (10W, 120Hz–20kHz) with no failure, ensuring longevity in smart home hubs.
Thermal Range: -25°C to +60°C operation / -30°C to +70°C storage, suitable for outdoor-adjacent devices.
Humidity Resistance: 40°C/90–95%RH for 24hrs, critical for kitchen or bathroom-mounted AI speakers.
Mechanical Stress: Passes 6x drop tests and 350℃ solder heat resistance (3–5 sec) for assembly robustness.
3. Target Applications
Robotics: High power-to-size ratio supports clear voice feedback in service robots.
Smart Home: 4Ω impedance pairs well with low-voltage smart displays (e.g., Alexa-enabled panels).
Bluetooth Speakers: Distortion <10% at 1W ensures clean mid-range playback for portable audio.
4. Market Context & Trends
Google Search Insights: Keywords like "52mm speaker for robots" and "4Ω Bluetooth speaker driver" align with this model's specs.
Competitive Edge: Compared to generic 52mm speakers (e.g., 3W models1 or 4Ω/10W alternatives2), the XDEC-52Y04T24NF12 offers higher power density and validated environmental resilience.
