Recommendation for a 40mm Full-Range Speaker Unit: The Proven Choice
In the market for audio components that pursue ultimate sound quality and practical value, the 40mm full-range speaker unit, with its "golden size," balances acoustic performance and installation flexibility, making it the preferred choice for numerous consumer electronics products. Shenzhen Xuanda Electronics Co., Ltd. understands this deeply. Their model XDEC-40Y04T17NH07B, tempered over years in the market, is an outstanding representative of this philosophy: it doesn't boast the most extreme specifications but is the "most suitable" solution tailored for customers seeking stability, durability, and a balanced listening experience.

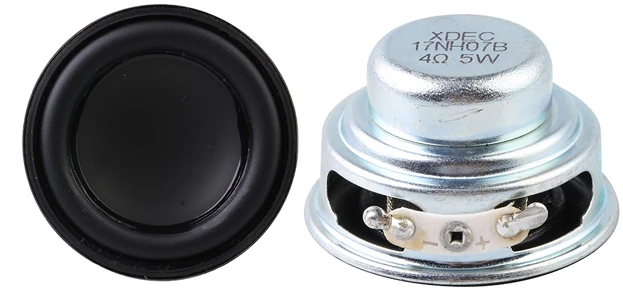

40Y04T17NH07B
Core Technology Analysis: Engineering for Balance and Reliability
The sophistication of this unit lies in how each design choice directly addresses common pain points of full-range drivers, solving them through solid materials and structural innovation.
| Feature Dimension | XDEC-40Y04T17NH07B Solution | Core Benefit Delivered |
|---|---|---|
| Magnetic Circuit | Dual Neodymium (NdFeB) Magnet Design | Provides far greater driving force than ordinary ferrite magnets, ensuring high sensitivity and excellent dynamic control. |
| Voice Coil & Durability | 16-core Kapton Voice Coil + Blue Zinc-plated Iron Frame | Kapton material withstands high temperatures, guaranteeing stability during prolonged high-power operation; the zinc-plated frame resists corrosion, enhancing overall lifespan. |
| Diaphragm & Acoustic Tuning | Dual-layer Pulp Cone + C-shaped PET Waterproof Dust Cap | The pulp cone delivers warm and natural midrange; the C-shaped dust cap optimizes airflow, enhances low-frequency extension, and achieves front-face waterproofing. |
| Targeted Sound Signature | Optimized for general applications | Avoids potential harshness in the high frequencies that dome-shaped caps can cause. The sound is more comfortable and listenable, suitable for a wider variety of content and scenarios. |
Its rated specifications of 4Ω impedance, 5W RMS power, and 6W max power allow it to easily match most standard audio amplifier circuits, providing sufficient volume while keeping distortion within a good range.
Market Value: Versatility and Exceptional Value
Since its successful development and continuous optimization starting in 2017, this unit has been successfully integrated into audio products for numerous domestic and international clients. Its value lies in "integration": combining waterproofing, robust bass, pleasant sound quality, and high reliability into one.
This means that whether for portable speakers requiring a certain level of ingress protection, smart devices prioritizing clear vocals, or batch products demanding high consistency, clients can use this single model to meet diverse needs. It significantly reduces the complexity of procurement, production, and inventory management, truly fulfilling the promise of "one unit satisfying multiple performances" and delivering exceptional value.
Conclusion
In summary, the Xuanda Electronics XDEC-40Y04T17NH07B full-range speaker unit is a mature product refined within the classic 40mm framework through practical designs like the dual neodymium magnets, Kapton voice coil, pulp cone, and C-shaped waterproof dust cap. It does not chase extreme parameters but focuses on delivering stable, balanced, durable, and widely adaptable sound performance within its rated power. It perfectly embodies the philosophy of "the most suitable product" and is a reliable choice for upgrading or developing various audio devices.
If you require more detailed specifications or wish to discuss adaptation solutions for specific application scenarios, welcome contact us XDEC !
