33mm Mini Speaker For Barcode Scanners: Selection Guide & Common Mistakes

Why Does a Barcode Scanner Need a Dedicated Speaker?

A barcode scanner seems simple-scan, transmit, display. But have you noticed the "beep" when a scan succeeds, or the alert tone when it fails? Both come from a tiny speaker hidden inside the device.

Compared to a Bluetooth speaker, the requirements for scanner speakers are completely different:

Audio feedback only: No music reproduction, no bass-just clear beeps or voice prompts

Ultra-low power consumption: Scanner battery life depends on every milliwatt saved

Extreme space constraints: The device is compact; speaker diameter must stay under 35mm

High reliability: Used in warehouses, hospitals, retail stores-must survive drops and dust

The 33mm Mylar speaker fits all four requirements. Here's a deep dive into a proven design with millions of units shipped: XDEC-29M08J24NB27-D70, 33.2×29×7.4mm, 8Ω, 1W.

XDEC-29M08J24NB27-D70 Key Specifications

* F0/SPL/THD marked N/A is normal for this application: audio feedback doesn't require acoustic parameter evaluation.

Why Barcode Scanner Speaker Selection Doesn't Need F0 or SPL

Many engineers instinctively ask: "What's the sensitivity? What's the frequency response?" But for barcode scanners, these parameters don't matter much.

Here's why:

Feedback tones are fixed-frequency beeps or voice prompts-no music reproduction needed

Volume adequacy depends on amplifier output and enclosure design, not speaker sensitivity alone

Resonance frequency F0 only matters for bass compensation, which barcode scanners don't need

So when selecting a scanner speaker, focus on three things: will it fit, is the power sufficient, and is the supplier reliable. Everything else is secondary.

Typical Applications for 33mm Speakers in Barcode Scanners

Retail POS Scanners: Scan success "beep" or failure alert, volume 75-85dB is sufficient

Warehouse PDA Devices: Scan storage location codes or logistics barcodes, with voice broadcast for quantity or item name

Medical Testing Equipment: Test tube scanning, sample identification-alert tone should be soft, not harsh

Industrial Barcode Readers: Assembly line scanning; high ambient noise may require higher SPL or vibration assist

Mobile Payment Scan Boxes: Scan-to-pay completion alert, moderate volume, ultra-low power

Smart Lockers / Parcel Lockers: Open/close alerts, voice announcing pickup codes

5 FAQs on Barcode Scanner Speaker Selection

Q1: Rectangular vs. Round 33mm Speakers-Which Is Better for Scanners?

Depends on PCB layout. The rectangular (33.2×29mm) variant has a lower profile, ideal for ultra-slim devices. Round (Φ33mm) speakers have more concentrated magnetic circuits and slightly higher sensitivity. If PCB space allows, rectangular is preferred for its mounting flexibility.

Q2: What If the Feedback Volume Is Too Low?

First, verify the amplifier output reaches 80%+ of the speaker's rated power. Second, check enclosure design-is there at least 5mm of back-cavity depth? Adding structure to the housing can boost SPL. If space is truly limited, consider a higher-sensitivity model or a boost converter circuit.

Q3: Does the Speaker Significantly Drain the Scanner Battery?

Under normal use, the speaker consumes less than 5% of total device power-unless you're continuously playing voice prompts. Wireless modules and screens are the main power draw. Selecting a speaker rated below 1W won't be a bottleneck in practice.

Q4: Will Dust Damage the Speaker Once It's Inside the Scanner?

Mylar speakers have an open structure and are not waterproof. For industrial-grade scanners, the entire device should meet IP54 or higher. If the speaker must be exposed, confirm with your supplier whether a conformal coating option is available.

Q5: What If the Device Needs Both Music Playback and Voice Prompts?

Barcode scanners typically don't need music. If voice announcements are required (e.g., "Scan successful, please collect item"), a full-range speaker can replace the Mylar driver-but volume, power consumption, and size will all increase, requiring a full system evaluation.

Selection Pitfalls to Avoid ⚠️

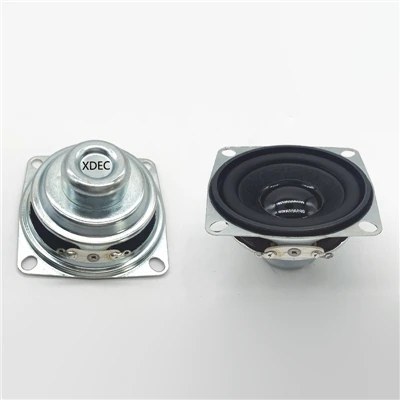

Don't repurpose Bluetooth speaker drivers: Bluetooth speakers use Y-type internal-magnet drivers with low F0 and high power-far too oversized for a scanner, consuming more space and power than needed.

Confirm lead wire length: Standard is 70mm, but compact PCBs may need custom lengths to avoid tension or bending stress.

Soldering temperature matters: Mylar diaphragms are thin; keep iron temperature below 350°C and contact time under 3 seconds.

Don't reverse polarity: Reversed polarity causes phase inversion, reducing effective SPL in multi-driver systems.

Always validate with prototype testing: Before mass production, test actual beep volume, enclosure resonance, and solder joint reliability-spec sheets alone aren't enough.

Why Choose XDEC?

Established in 2009, Shenzhen XDEC Electronics Co., Ltd. has been专注于扬声器制造 17 years. XDEC holds ISO9001:2015 / ISO14001:2015 / IATF16949 / TUV certifications and exports to 30+ countries including Germany, Japan, South Korea, USA, India, and Vietnam, with monthly capacity of 3 million units.

Our 33mm Mylar speaker series has shipped tens of millions of units, widely used in barcode scanners, talking pens, smart door locks, baby monitors, and other IoT devices. Full-service support from samples (7 days) to mass production (30 days), with OEM/ODM customization available.
