The 30mm Mylar speaker is a critical component in compact electronics like talking pens, learning tablets, intercoms, and robot vacuums, where space efficiency and clear audio output are paramount. Based on the specifications of XDEC-30M, this guide breaks down key selection criteria and applications for this versatile speaker type.

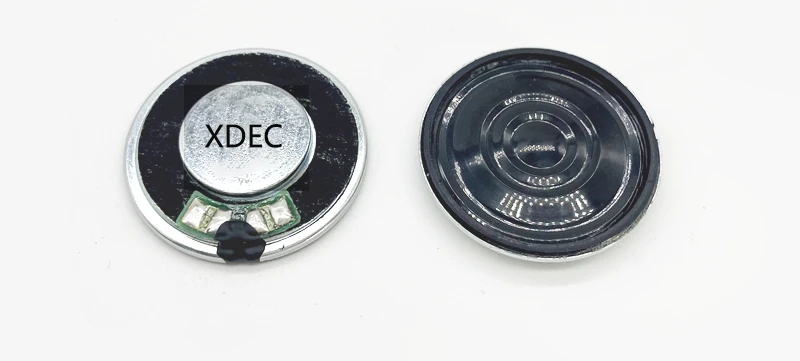

Core Features of XDEC-30M
Compact Design with High Durability

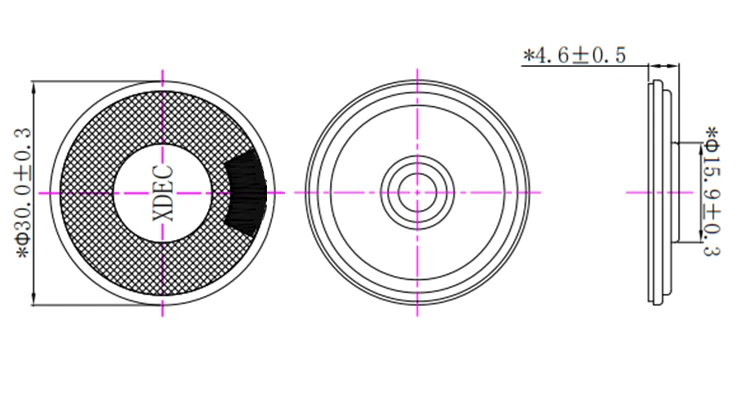

Dimensions: Φ30mm × 4.6mm (ultra-thin for embedded systems).
Mylar Diaphragm: Lightweight yet robust, ideal for high-frequency clarity.
IPX7 Waterproof Rating: Protects against moisture in humid environments.
Balanced Audio Performance
Impedance: 8Ω ±15% (compatible with low-power ICs in educational devices).
Power Handling: 1W rated / 1.5W max (prevents distortion in voice-heavy applications).
Frequency Range: 560Hz–6.5kHz (-10dB), optimized for speech and alerts.
Sensitivity: 92±3dB @0.1W/0.1m (ensures audible output even at low power).
Rigorous Reliability Testing
96-hour white noise load test (440Hz–20kHz at 1W).
Environmental resilience:
Temperature: -25°C to +60°C operation (-30°C to +70°C storage).
Humidity: 90–95% RH at 40°C for 24 hours.
Mechanical robustness: Passes 6-drop slide tests without buzz/rattle.
Top Applications for 30mm Mylar Speakers
Talking Pens: Delivers crisp pronunciation for language learning.
Educational Tablets: Balanced mid-range for instructional audio.
Intercoms: Clear voice transmission with minimal power draw.
Robot Vacuums: Alerts and status updates audible over motor noise.
3 Key Selection Criteria
Impedance Matching
Verify compatibility with your device's amplifier (e.g., 8Ω for most low-voltage designs).
Environmental Suitability
For outdoor/cleaning devices, prioritize IPX7 waterproofing and humidity resistance.
Audio Profile Needs
Choose higher sensitivity (≥90dB) for quiet environments (e.g., classrooms).
For wider frequency response (e.g., music playback), consider models with extended bass (≤400Hz).
Why XDEC's 30mm Mylar Speaker?
Proven in Education Tech: Used in OEM designs for major learning brands.
Customizable: Wire length, connectors, and damping materials can be adjusted.
Quality Assurance: 100% tested for buzz/rattle and frequency response pre-shipment.
For integration support or datasheet requests (including 3D drawings and SPL curves), contact XDEC's engineering team.
