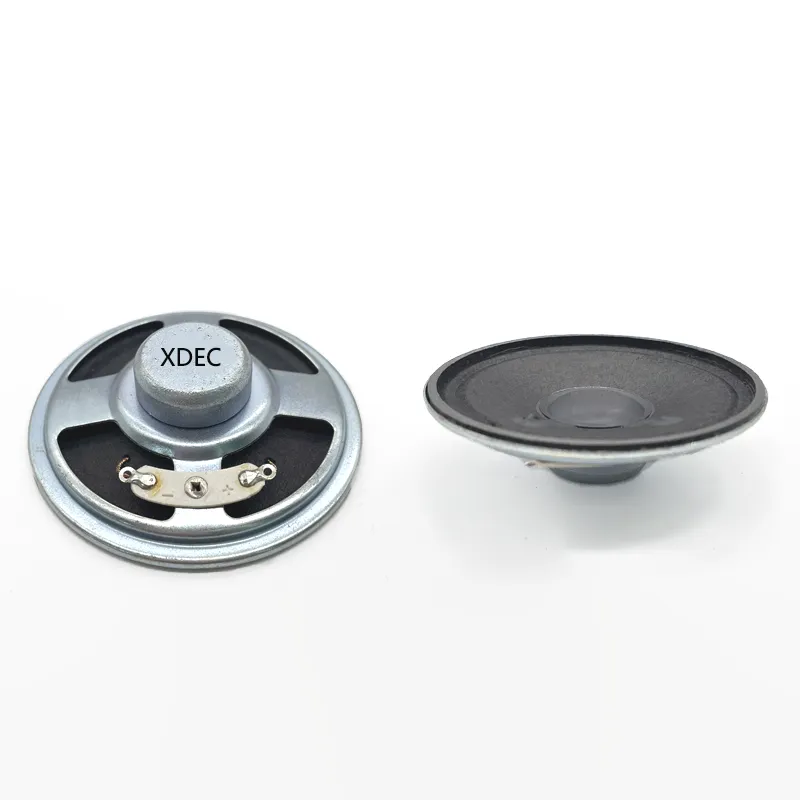

66mm 4ohm 5w LED light Multimedia Speaker
NO. XDEC-66Y04T23NF02C
Speaker Driver Product Introduction
This 66mm round full-range speaker unit features a 4-ohm impedance and 5-watt power handling, with an internal neodymium iron boron magnet structure. With compact dimensions of 65.5mm in diameter and a slim profile of just 17.8mm in height, this ultra-thin design allows for versatile integration into space-constrained applications for both voice and music reproduction.
The speaker delivers exceptional performance with a remarkably high sensitivity of 95dB under standard 0.5m/1W testing conditions, ensuring outstanding output volume and clarity. Utilizing paper-based materials for both the cone and dust cap, this speaker reproduces vocals with exceptional clarity and natural tone, making it ideally suited for educational products requiring clear, loud voice projection. Its applications include educational LED Bluetooth speaker lights, learning-oriented Bluetooth stationery speakers, and various early education devices.
As a popular standard model from Xuanda Electronics (XDEC), this speaker represents our commitment to quality and performance. We welcome inquiries and orders – please visit our store or contact us via email for more information.

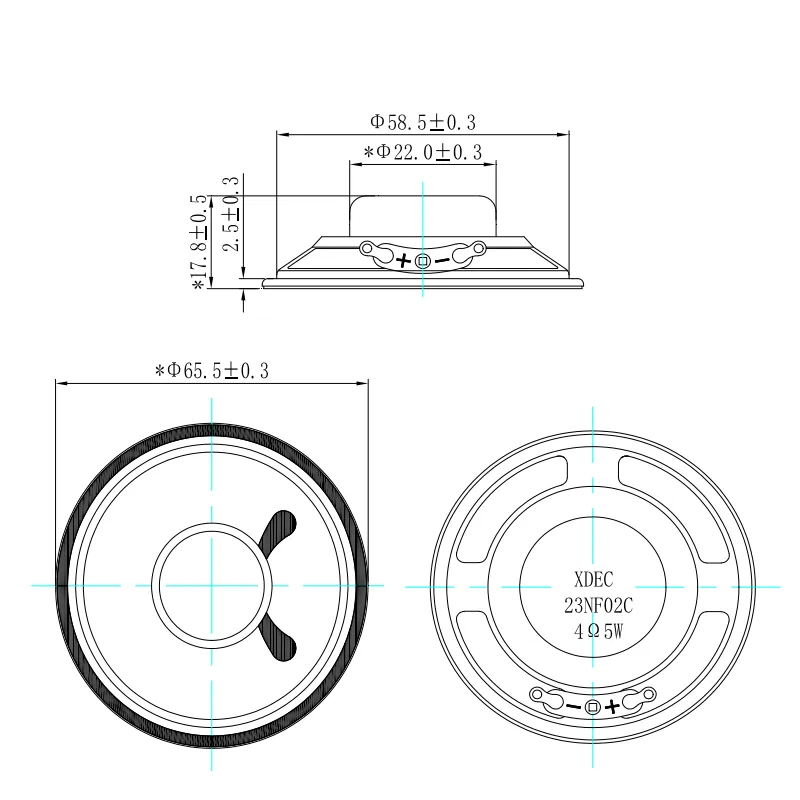

Dimension Diagram
66mm 4ohm 5w Speaker Dimension Diagram
This dimension diagram provides a comprehensive overview of the physical attributes and specifications of the Speaker, aiding in its proper installation and integration into Audio Device designs.

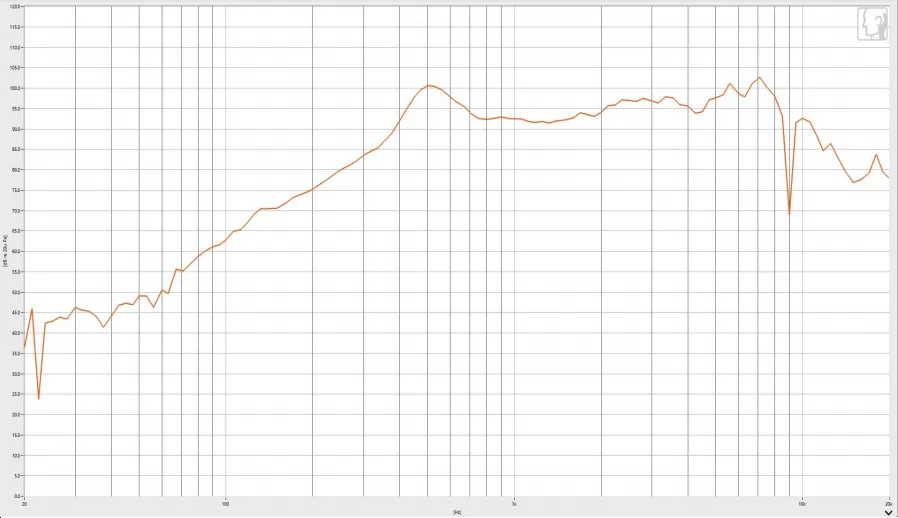

Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
|
NO. |
Item |
Specification |
Condition |
|
|
1 |
Dim |
Φ66*17.8H mm |
||
|
2 |
Anomia Impedance |
4±15% OHM |
At 1.0KHz / 0.89V |
|
|
3 |
Input power |
Rated:3W/ Max:5W |
At 3.46V / 4.89V |
|
|
4 |
Resonance Frequency |
500±20%Hz |
At 1.0V |
|
|
5 |
S．P．L． |
95±3 dB(0.5W/1M) |
At0.8K/1.0K/1.2K/1.5KHz (Average) |
|
|
6 |
Frequencies Range |
F0~18K |
Output S.P.L. -10dB
|
|
|
7 |
Distortion |
5%Max |
At 1.0KHz 0.1W/0.1M |
|
|
8 |
Buzz & Rattle |
Not be audible sine wave between at at 3.46V /400~5KHz
|
||
|
9 |
Polarity |
Diaphragm shall move forward. |
||
|
10 |
Load test |
Must be normal after load test:white noise 24 hours. |
||
|
11 |
High TEMP test |
After having been in a test chamber for 48 hours at the condition of +60℃ 20~25%R.H and keep 2 hours |
||
Product Applications
Intercom
Experience crystal-clear communication with our 66mm multimedia 4ohm 5w Speaker. Our precision-engineered driver ensures superior sound quality for intercom systems, capturing every detail and providing a clear and reliable audio environment for seamless communication.
Learning Device
Learn with clarity and precision using our 66mm multimedia 4ohm 5w Speaker. Our high-fidelity driver reproduces audio signals with accuracy, providing a rich and immersive listening experience for educational devices and enhancing the learning process.
Reading Pen
Discover the joy of reading with our 66mm multimedia 4ohm 5w Speaker. Our compact and efficient driver brings text-to-speech technology to life, providing a clear and natural-sounding voice output that enhances the reading experience.
Electric Toy
Play with excitement and clarity using our 66mm multimedia 4ohm 5w Speaker. Our durable and reliable driver brings games and interactive experiences to life, providing a rich and engaging audio environment that immerses children in their play.
Company Introduction
Founded in 2009, our company is a well-known domestic electroacoustic high-tech enterprise integrating R & D, production and sales. Our products include: speaker drivers, sound receiver, microphones and other electroacoustic products.
Professional team
With our state-of-the-art facilities and experienced team, we offer custom sampling services to meet your unique requirements.
24-hour online communication
Our dedicated professionals are available 24/7 to provide support and ensure a seamless experience throughout the process.
5000m²
Factory area
150+
Factory employee
100+
Precision equipment
100%
Product qualification rate
Why Choose Us?
15 years Industry Experience
With over 15 years in the industry, we bring seasoned expertise in electronic components and speaker products, ensuring top-notch quality and reliability.
Dedicated Workforce
Our team of over 200 skilled employees is committed to excellence, leveraging their expertise to deliver innovative solutions and exceptional customer service.
State-of-the-Art Facilities
Spanning 5000m², our modern manufacturing facility is equipped with cutting-edge technology, enabling efficient production and stringent quality control.
Customized Solutions
We specialize in tailored electronic components and speaker products, offering flexible manufacturing capabilities to meet diverse client needs with precision and efficiency.
Our Service Processes
Our free service hotline:13528883307
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Honor and qualification
Official certification, professional after sales service.
Frequently Asked Questions
What is a mini Speaker Driver?
+
-
A mini Speaker Driver is a type of speaker component that uses a thin, flexible mini film as the diaphragm to produce sound waves. It is known for its high-quality sound reproduction, durability, and compact design, making it suitable for a wide range of applications, including audio devices, intercom systems, and toys.
Could I have samples of Speaker Drivers for testing first?
+
-
Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
How long do Speaker Drivers last?
+
-
The lifespan of a Speaker Driver depends on several factors, including usage, environment, and maintenance. With proper care and maintenance, a Speaker Driver can last for many years.
How do I choose the right speaker driver for my product?
+
-
When choosing a Speaker Driver, consider factors such as the application, size, power handling, frequency response, brand reputation, and price. It's also important to read reviews from other users to get an idea of the performance and reliability of the driver.
What is the minimum order quantity for this 66mm multimedia 4ohm 5w Speaker?
+
-
Generally, a minimum order of 3000 units is required. Please contact us for further discussion.
