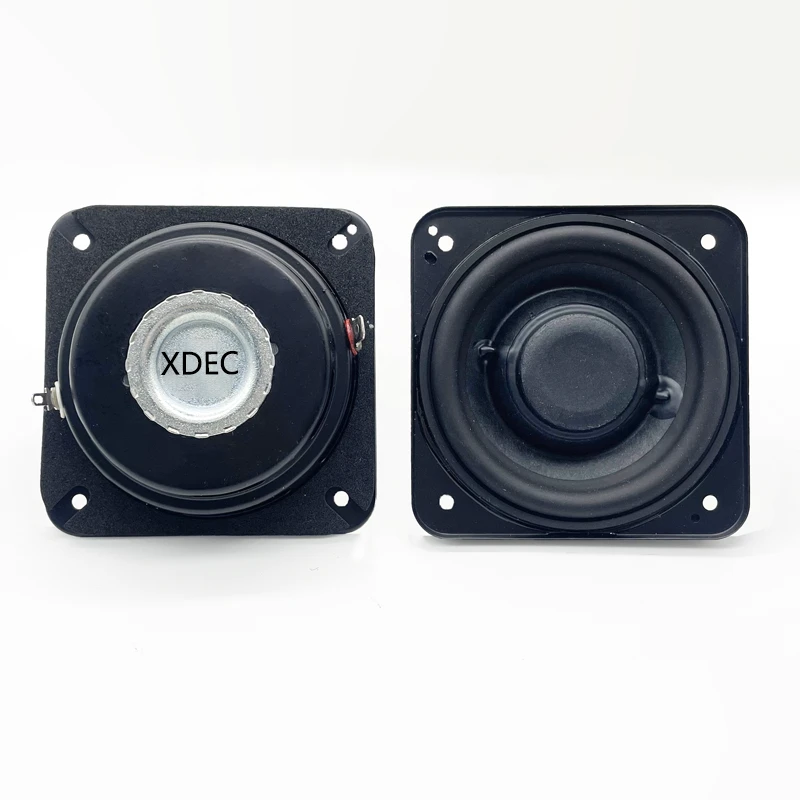

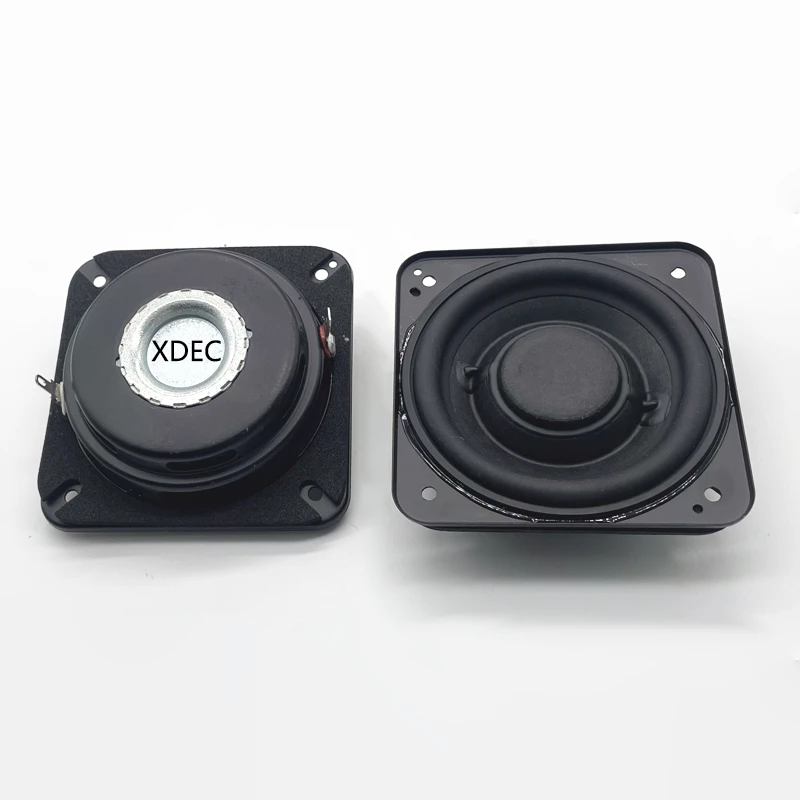

77mm 6ohm 15w Fullrange Square Multimedia Speaker
XDEC-77Y06T23NK08
Speaker Driver Product Introduction
This product is a 77x77mm (3-inch) square full-range multimedia speaker, engineered with a robust metal frame that provides exceptional structural support and stability. Its ultra-slim profile, with a total thickness of just 24.5mm, makes it ideal for space-constrained installations.
At its core, it features a powerful neodymium magnet system for high sensitivity and dynamic output. The driver incorporates a 20mm KSV high-temperature voice coil, utilizing superior lead-out wire design. This critical engineering allows the coil to withstand significant instantaneous current, ensuring reliable performance even during powerful bass excursions and large-cone oscillations.
The diaphragm is constructed from high-rigidity kraft paper, known for its exceptional stiffness and durability. This material can handle high power handling while delivering balanced sound reproduction-offering both clear, articulate vocals and dynamic music performance.
Designed by our XDEC master acoustic engineers, this speaker excels at full-range music playback. Its minimal thickness and superior design make it a premier choice for various high-end multimedia applications, such as automotive audio systems and ultra-slim speaker enclosures.
Our XDEC is a professional speaker manufacturer for 16 years, we have rich experience,
included mylar speaker, multimedia speaker,speaker box, headphone speaker and so on,
welcome contact us for more info ~
widely used in intercom,two way radio,smart home devices, smart speakers, smart TVs, game consoles, laptops, and desktop computers. They deliver exceptional sound quality, boasting clear highs, rich mid-tones, and deep bass, catering to the diverse audio expectations of manufacturers. Specifically, they are well-suited for high-fidelity audio devices, security monitoring systems, and multimedia audio devices.

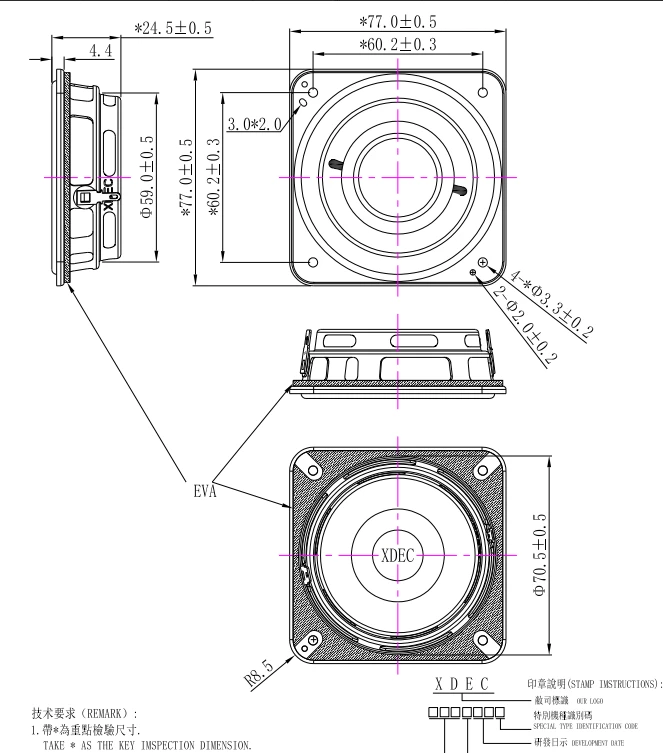

Dimension Diagram
This dimension diagram provides a comprehensive overview of the physical attributes and specifications of the 77x77mm (3-inch) square full-range multimedia speaker, aiding in its proper installation and integration into Audio Device designs.
Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
Product Applications
smart home
Elevate your smart home experience with 77x77mm (3-inch) square full-range multimedia speaker. Designed for seamless integration, our speaker brings high-fidelity audio to your smart devices, allowing you to enjoy crystal-clear dialogue and precise sound effects.
Bluetooth Speaker
Our 77x77mm (3-inch) square full-range multimedia speaker can be installed in Bluetooth speakers, significantly enhancing the sound quality and audio effects. With high-quality audio output, they can clearly present every detail of the audio signal, more realistically reproducing the audio effects of music and movies
projector
Pairing our projector with our 77x77mm (3-inch) square full-range multimedia speaker can significantly enhance the overall audio-visual experience. The speakers' high-quality audio output clearly presents every detail of the audio signal, reproducing audio effects with greater realism.
smart TV
Our smart TV is designed to provide an exceptional viewing experience. When paired with our 77x77mm (3-inch) square full-range multimedia speaker, it can deliver a more immersive and engaging experience. The speakers' high-quality audio output clearly presents every detail of the audio signal, reproducing audio effects with greater realism.
Company Introduction
Founded in 2009, our company is a well-known domestic electroacoustic high-tech enterprise integrating R & D, production and sales. Our products include: speaker drivers, sound receiver, microphones and other electroacoustic products.
Professional team
With our state-of-the-art facilities and experienced team, we offer custom sampling services to meet your unique requirements.
24-hour online communication
Our dedicated professionals are available 24/7 to provide support and ensure a seamless experience throughout the process.
5000m²
Factory area
150+
Factory employee
100+
Precision equipment
100%
Product qualification rate
Why Choose Us?
15 years Industry Experience
With over 15 years in the industry, we bring seasoned expertise in electronic components and speaker products, ensuring top-notch quality and reliability.
Dedicated Workforce
Our team of over 200 skilled employees is committed to excellence, leveraging their expertise to deliver innovative solutions and exceptional customer service.
State-of-the-Art Facilities
Spanning 5000m², our modern manufacturing facility is equipped with cutting-edge technology, enabling efficient production and stringent quality control.
Customized Solutions
We specialize in tailored electronic components and speaker products, offering flexible manufacturing capabilities to meet diverse client needs with precision and efficiency.
Our Service Processes
Our free service hotline:13528883307
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Honor and qualification
Official certification, professional after sales service.
Frequently Asked Questions
What is a Multimedia speaker driver?
+
-
A mini Speaker Driver is a type of speaker component that uses a thin, flexible mini film as the diaphragm to produce sound waves. It is known for its high-quality sound reproduction, durability, and compact design, making it suitable for a wide range of applications, including audio devices, intercom systems, and toys.
Could I have samples of Speaker Drivers for testing first?
+
-
Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
How long do Speaker Drivers last?
+
-
The lifespan of a Speaker Driver depends on several factors, including usage, environment, and maintenance. With proper care and maintenance, a Speaker Driver can last for many years.
How do I choose the right speaker driver for my product?
+
-
When choosing a Speaker Driver, consider factors such as the application, size, power handling, frequency response, brand reputation, and price. It's also important to read reviews from other users to get an idea of the performance and reliability of the driver.
What is the minimum order quantity for this 77x77mm (3-inch) square full-range multimedia speaker ?
+
-
Generally, a minimum order of 3000 units is required. Please contact us for further discussion.
