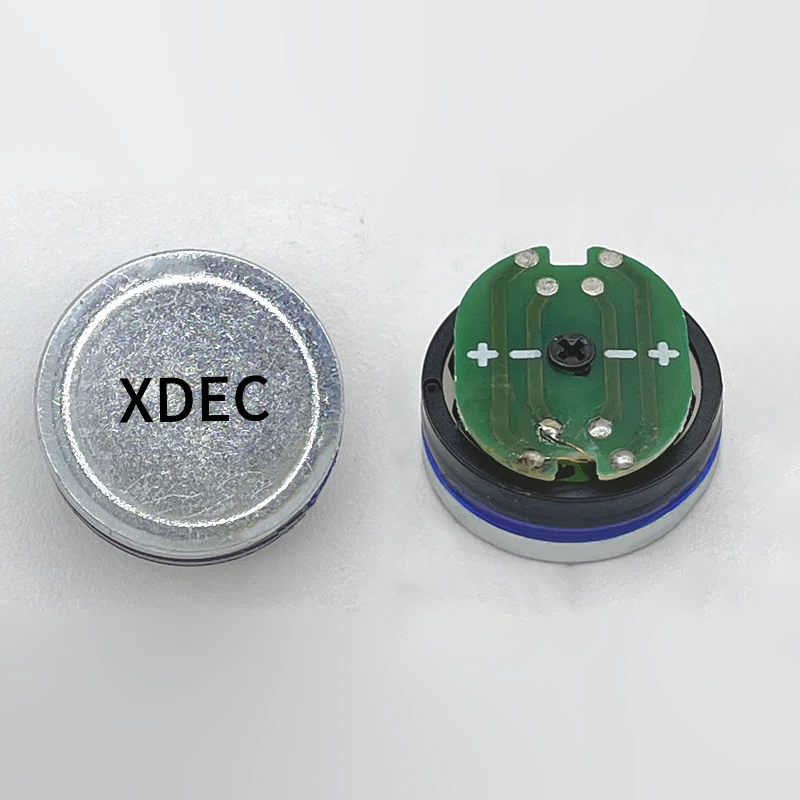

15.6mm Round Multimedia Speaker Driver
Mini Bluetooth Speaker / Smart Speaker Application
8Ω Impedance | 1W Rated Power | Compact High-Quality Audio
🎯 Challenges in Miniaturized Design
Limited Cavity Space
Smart speakers and Bluetooth speakers are getting smaller with compact cavities and limited mounting space
High Audio Quality Demands
Small size requires clear vocals, rich music layers, and responsive voice interaction
Power Optimization
Portable devices need long battery life, speaker efficiency directly impacts usage time
Cost Control
Consumer electronics are competitive, requiring cost-effective speaker solutions
✅ XDEC Solution
15.6mm ultra-compact round design easily fits into various small cavities; 280Hz low resonance ensures deep bass; efficient 1W power output balances sound quality and power consumption; 17 years professional manufacturing, stable and reliable quality.
📋 Product Specifications
| Parameter | Specification |
| Model | XDEC-16Y08J19NF06 |
| Dimensions | Φ15.6mm × 7.5Hmm (Round) |
| Impedance | 8.0Ω ± 20% (DCR: 8.6Ω ± 15%) |
| Rated Power | 1W |
| Max Power | 1.5W |
| Resonance Frequency | 280Hz ± 20% |
| Frequency Response | F0 ~ 20kHz |
| Distortion | ≤5% MAX |
| Polarity | + (Positive Terminal Marked) |
| Load Test | Normal after 96 hours white noise test |
| High Temp Test | +60℃ 20~25%R.H, 96 hours, no abnormality |
| Low Temp Test | －25℃ ± 3℃, 96 hours, no abnormality |
| Humidity Test | +40℃ 90~95%R.H, 96 hours, no abnormality |
| Storage Temp | －25℃ To +60℃ |
📐 Dimension Drawing & Frequency Response
Product Dimension Drawing (Φ15.6mm × 7.5Hmm)
Frequency Response Curve (F0~20kHz)
✨ Why Choose XDEC Multimedia Speaker Driver
Ultra-Compact
15.6mm small round, easily fits into mini Bluetooth speaker cavities
Clear Vocals
280Hz low resonance, authentic voice reproduction, sensitive voice interaction
High Efficiency
1W rated power, optimized consumption, extends portable device battery life
Wide Temp Range
-25℃~+60℃ operating temp, adapts to various indoor/outdoor environments
17 Years Expert
ISO9001 certified factory, stable quality, reliable supply
🏭 Typical Applications
Mini Bluetooth Speaker
Main Application | Ultra Portable
Smart Speaker
Voice Interaction Core
Smart Home
IoT Voice Control
Educational Robot
Voice Playback & Interaction
Smart Wearable
Watch/Glasses Audio
⚖️ XDEC vs Industry Common Specifications
| Comparison | XDEC XDEC-16Y08J19NF06 | Industry Common |
| Dimensions | Φ15.6mm × 7.5Hmm | Φ18mm or above |
| Power | 1W rated / 1.5W max | 0.5W ~ 1W |
| Resonance | 280Hz (Deep Bass) | 350Hz ~ 500Hz |
| Distortion | ≤5% MAX | 5% ~ 10% |
| Certification | ISO9001 + Full Reliability Tests | Basic Testing |
🏆 Quality Certification & Factory Strength
ISO9001 Certified
Quality Management System
5M Units/Month
Large-Scale Production
7-15 Days Lead Time
Fast Response & Delivery
OEM/ODM
Custom Manufacturing
❓ Frequently Asked Questions
Q1: How does this speaker perform in mini Bluetooth speakers?
15.6mm × 7.5Hmm round multimedia speaker driver is specifically designed for mini Bluetooth speakers. 280Hz low resonance ensures deeper bass extension, 1W rated power balances sound quality and power consumption, delivering clear and full sound even in compact size.
Q2: What is the minimum order quantity?
MOQ: 3,000 pcs. For small batch trial production, 500 pcs MOQ available to flexibly meet R&D stage requirements.
Q3: What is the lead time?
Sample lead time: 3-5 days (1-4 free samples); Production lead time: 7-15 days. Standard stock products available for quick shipment.
Q4: What customization services are supported?
Supports customization of impedance, power, dimensions, wire length and connectors; provides mold tooling service; can optimize design for customer product cavity structure. 17 years professional manufacturing, stable and reliable quality.
