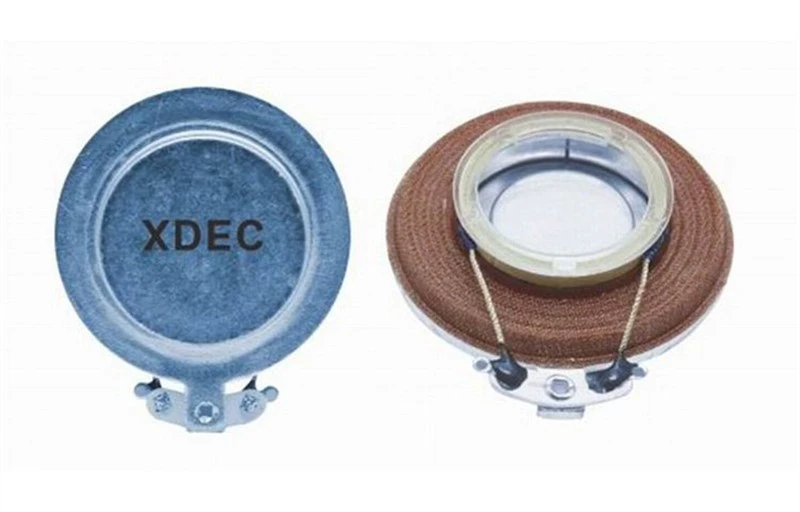

ODM OEM speaker 44mm 4ohm 15w vibration speaker
Model No.: XDEC-44Z-1
Part I. Introduction
ODM OEM factory 44mm 4ohm 15w vibration speaker
1. 44mm audio flat Vibration Speaker, with 16.5mm height, rms 15w, Max 20W,4ohm.
2. Neodymium magnet, high strong motor material, use time longer, wires and connectors are available.
3. Made of high class spider, 16mm voice coil, heat resistant lead wires.
4. High directivity , flat assemble, flat audio exciter. 360 degree all direction sound,
high HIFI. Besides this vibration speaker , our XDEC Speaker also have Headphone
Speaker driver,Tablet Speaker unit, Multimedia Speaker unit, soundbox speaker ,
Mylar Speaker these series speaker types, total over 1200 type of speaker models for
you choose.
Mainly used for:
Massager machine, massager chair, vibration machine,home audio products, LCD TV, display,Notebook Speaker, car audio, ceiling speaker, in-wall speaker,portable speaker, multimedia speaker, FM radio and so on.
Part II. Dimension
Part III. Technical parameters
|
NO. |
Item |
Specification |
|
1 |
Dimensions |
Ф44mm*H16mm |
|
2 |
Nomial Impedance |
4Ω±15% |
|
3 |
Input power |
Rated:15W/ Max:20W |
|
4 |
Resonance Frequency |
N/A |
|
5 |
S．P．L． |
N/A |
|
6 |
Frepuency Range |
N/A |
|
7 |
Distortion |
5%Max |
|
8 |
Magnet Material |
NeFeB(neodymium) |
|
9 |
Frame Material |
Plastic |
|
10 |
Remark |
1. Customized impedance and power are available; |
Part IV. Our company
Established in 2009 as a domestic well-known electro-acoustic enterprises, Shenzhen Xuanda Electronics Co.,Ltd(XDEC) has been specializing in R&D, manufacture and marketing of various speaker, receiver, microphone and other electro-acoustic products which are widely applied in headphones, mobile phones, walkie-talkies, point-and-click pens, learning machines, Cordless telephone, laptops, portable dvds, TV, navigation devices, building security, car audio-visual, mini-audio and other consumer electronics products as well as communications equipments etc.
2015, successfully passed ISO9001:2008 quality management system
2017, won the Shenzhen high-tech Enterprise Certificate and passed the Rhine TUV certification
2018, passed ISO9001:2015 quality management system and ISO14001:2015 Environmental Management System Certification
2023, obtained IATF16949 automotive industry quality system certification
Located in Shenzhen and neighboring the lung tai highway, Nanguang Highway, Guangmingcheng Station ,which make it naturally owned convenient transportation and beautiful environment. XDEC has over 200 employees,and regarded as trustworthy partners of many domestic and oversea customers by its strong R&D capabilities, high-grading quality and excellent service. The company has always taken technical innovation as the driving force of the company's sustainable development, from product parts development to product assembly integration, to provide customers with a full range of product design and engineering services, to ensure product quality and excellent sound quality.
XDEC has been adhering to the"Integrity, quality, innovation, service" business philosophy,strictly controlling every process
of the production, high attention to production equipment, quality and R & D investment, vigorously introduce advanced production equipment and independent R & D equipment to meet customer needs, adhere to independent innovation, Excellence, committed to in-depth R&D more perfect electro-acoustic products. Willing to cooperate with friends from all walks of life, hand in hand, create brilliant.
Part V. Some of our partners
Part VI. FAQ
Q1. What is the MOQ?
XDEC: 3000pcs for one model.
Q2.Do you support OEM and ODM services?
XDEC: Yes, we can customize products according to the drawing.Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '
Q3. What are the payment methods?
XDEC: T/T, PayPal, Western Union, Money Gram.
Q4. What are the payment terms?
XDEC: 30% deposit in advance and 70% balance before delivery.
Q5. Can I get some free samples before mass production?
XDEC: Of course! We will be happy to send you free samples for your quality evaluation. You just need to bear shipping cost.
Q6. How long can I get the samples?
XDEC: Usually we make samples around 3-5 days, it also depends on your product and request.
