46mm 8Ω 2.5W BOX Speaker Driver
Model: XDEC-BOX2040B08J24NE13-D270 | Customer P/N: K39072
This premium BOX speaker features a compact 46×23×18.5mm design with high sensitivity of 93dB. Ideal for smart speakers, portable audio devices, and space-constrained applications. Manufactured by XDEC with 14+ years of audio expertise.
Get Free Sample & QuoteProduct Images

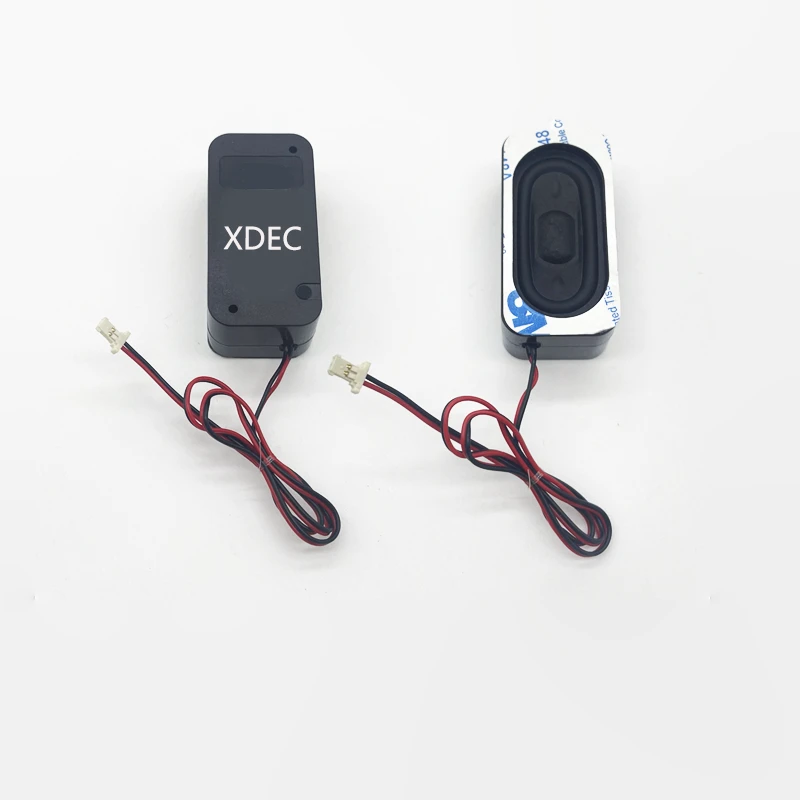

White Background with Logo

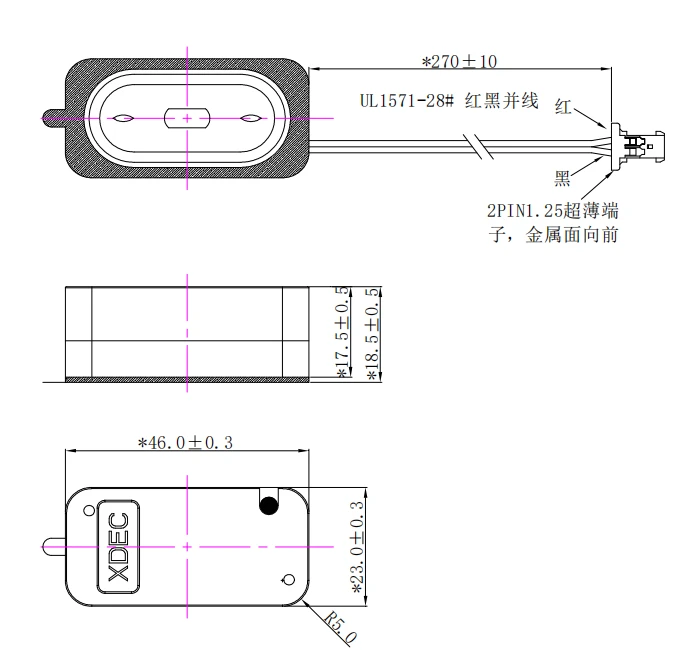

Dimension Diagram

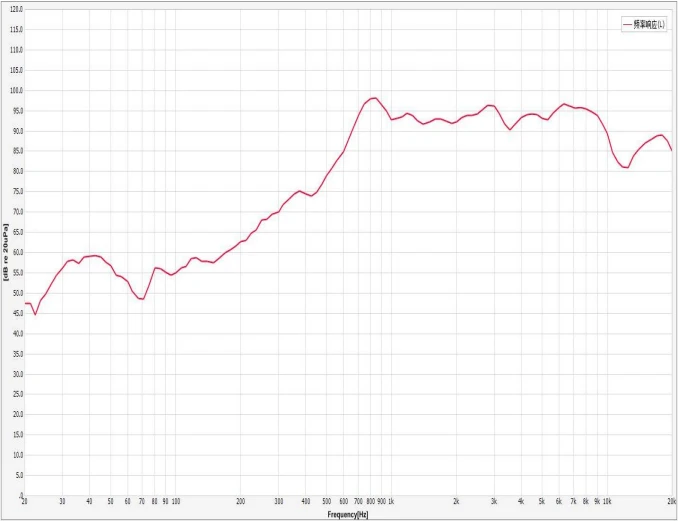

Frequency Response Curve
Technical Specifications
| No. | Parameter | Specification | Condition |
|---|---|---|---|
| 1 | Dimension | 46mm × 23mm × 18.5Hmm | - |
| 2 | Nominal Impedance | 8Ω ±15% | ACR @ 1500Hz, 1.0V |
| 3 | Rated Power | 2.5W | @ 4.47V |
| 4 | Max Power | 3.0W | @ 4.89V |
| 5 | Resonance Frequency | 850Hz ±20% | @ 1.0V |
| 6 | Sensitivity (SPL) | 93 ±3dB | 0.1W/0.1M @ 1000Hz |
| 7 | Frequency Range | 850Hz ~ 20kHz | -10dB max |
| 8 | Distortion | ≤10% | @ 1.0V, 1000-5000Hz |
| 9 | Polarity | Diaphragm moves forward (+) | - |
| 10 | Operating Temp | -25°C to +60°C | - |
| 11 | Storage Temp | -30°C to +70°C | - |
Product Description
The XDEC-BOX2040B08J24NE13-D270 is a premium BOX speaker driver designed for applications requiring high sound quality in a compact form factor. With its 46mm compact size and 93dB high sensitivity, this speaker delivers clear, powerful sound while fitting into space-constrained designs.
Featuring a robust 2.5W rated power (3.0W max) and wide frequency response from 850Hz to 20kHz, this BOX speaker is perfect for smart speakers, Bluetooth speakers, tablet audio, and other consumer electronics requiring excellent acoustic performance.
Manufactured by XDEC (Shenzhen Xuanda Electronics Co., Ltd.), a professional speaker manufacturer with over 14 years of experience and certifications including ISO9001, ISO14001, and IATF16949. We offer OEM/ODM services with flexible customization options for impedance, power, and dimensions.
