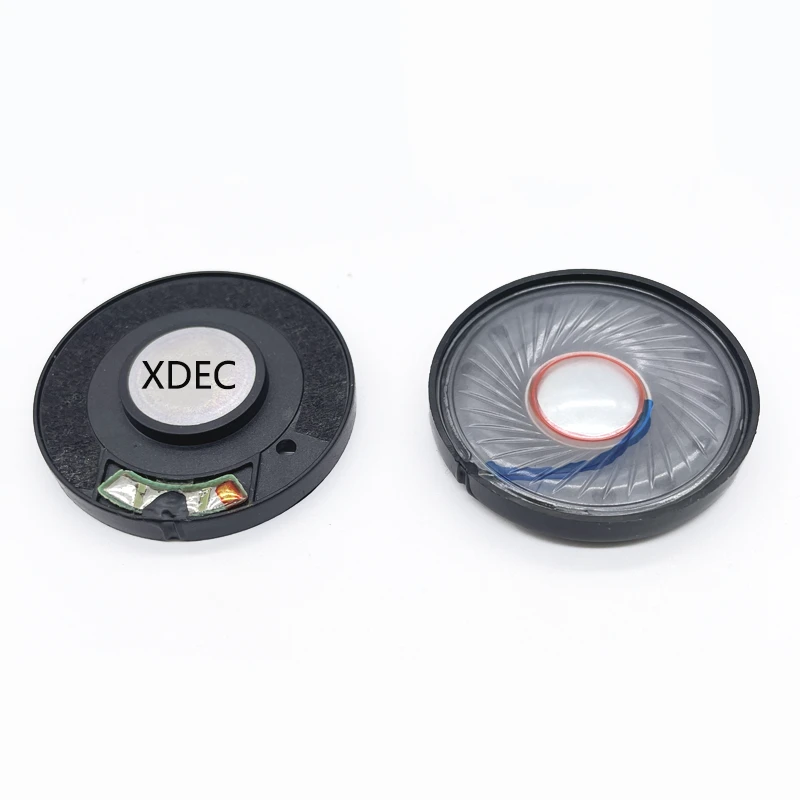

40mm Over-Ear Headphone Driver
32 Ohm · High Sensitivity Design
Why Choose XDEC 40mm Headphone Driver?
❌ Common Headphone Driver Issues
- Low sensitivity - phones can't drive them properly
- Muddy midrange - vocals and dialogs lack clarity
- Harsh treble - listener fatigue after short sessions
- High distortion - breakup at moderate volume
- Poor batch consistency - L/R channel imbalance
✓ XDEC Solution
- 107dB high sensitivity - phone-friendly loudness
- 32Ω standard impedance - universal source match
- F0~20kHz wide response - balanced 3-band tuning
- ≤5% distortion - clean at high SPL
- 17 years of QC discipline - tight L/R matching
Product Specifications
| Parameter | Value |
|---|---|
| Model | XDEC-40E32J15NG26 |
| Type | Headphone Driver Unit (E-Class, Dynamic) |
| Dimensions | Φ40mm × 6.3Hmm |
| Nominal Impedance | 32Ω |
| Rated Power | 50mW |
| Max Power | 80mW |
| Sensitivity | 107 ± 3dB |
| Frequency Response | F0 ~ 20kHz |
| Distortion | ≤ 5% |
| Polarity | + (Positive) |
| Operating Temp | -25℃ ~ +60℃ |
| Storage Temp | -25℃ ~ +60℃ |
| Load Test | White noise 48 hours - function normal |
Dimension Drawing & Frequency Response

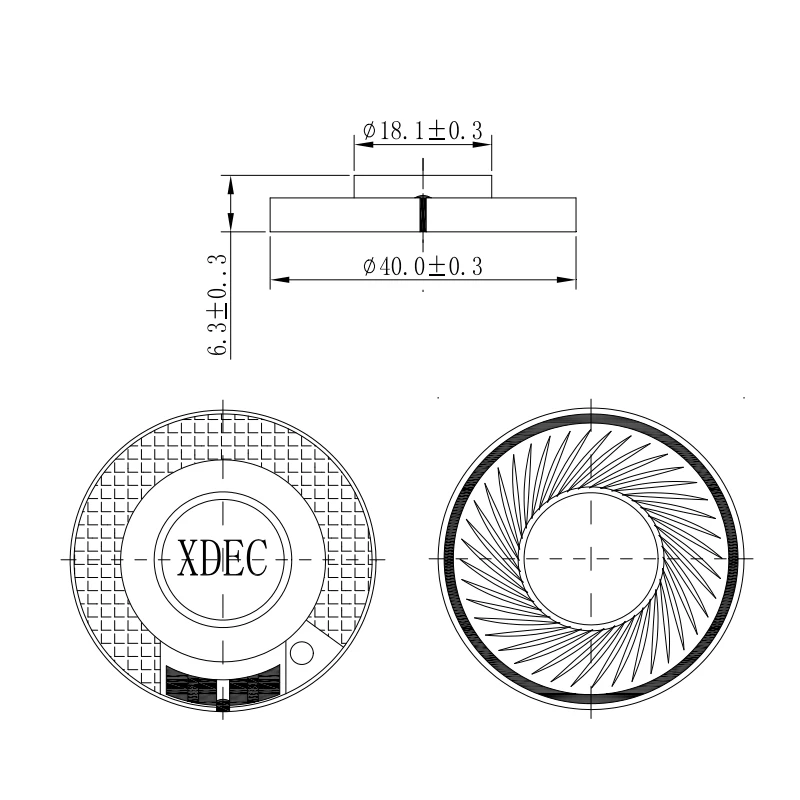

Dimension Drawing

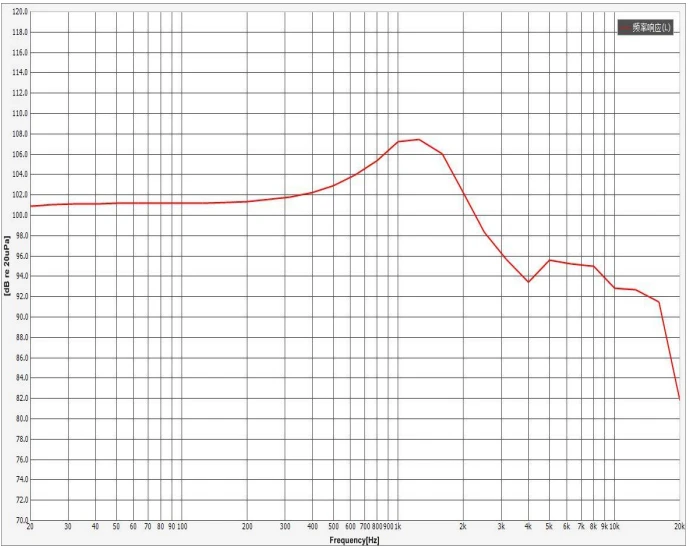

Frequency Response
5 Core Advantages of Our 40mm Headphone Driver
107dB High Sensitivity
Phones, laptops, and tablets can drive it directly - no extra amp needed
32Ω Standard Impedance
Compatible with all mainstream audio sources and portable amplifiers
F0~20kHz Full Band
Tight bass, articulate mids, detailed highs - flat enough for tuning
50mW Low Power Draw
Kind to wireless headphones - extends battery life on BT designs
17 Years of Manufacturing
ISO9001 / IATF16949 certified, stable QC, export to 30+ countries
Typical Applications
Over-Ear Headphones
HiFi music, daily commute, lifestyle
Studio Monitors
Tracking, mixing, broadcast monitoring
Gaming Headsets
Esports, FPS positional audio
Business Headsets
Call centers, UC, remote work
Hearing Assistance
PSAPs, assistive listening devices
XDEC vs Industry Standard
| Item | XDEC 40mm Driver | Industry Average |
|---|---|---|
| Sensitivity | 107 ± 3dB | 100 ~ 105dB |
| Impedance | 32Ω standard | 16Ω / 24Ω / 64Ω mix |
| Frequency Response | F0 ~ 20kHz | F0 ~ 18kHz |
| Rated Power | 50mW (kind to sources) | 30 ~ 40mW |
| Certifications & Custom | ISO9001 + OEM/ODM | Generic / no cert |
Quality Certifications & Factory Strength
ISO9001 / IATF16949
Dual quality system certified
17 Years Speaker Factory
Shenzhen Xuanda Electronics
3-5 Day Lead Time
Stock SKUs / 15-20 days custom
Full OEM/ODM Service
Spec / housing / packaging
Frequently Asked Questions
Q1: Is this 40mm headphone driver good for over-ear HiFi headphones?
A: Yes. With 107±3dB sensitivity and 32Ω impedance, smartphones can drive it directly to a satisfying SPL with full detail. F0~20kHz full-band response supports balanced tuning for music, podcast, and gaming use cases.
Q2: What is the MOQ and lead time?
A: Standard SKUs start at MOQ 3000 pcs. Trial orders of 500 pcs are accepted for early-stage validation. Customization (spec / housing / packaging) starts at 10000 pcs. Lead time is 3-5 days for stock, 15-20 days for custom builds.
Q3: Can you customize 16Ω, 24Ω, or 64Ω impedance versions?
A: Yes. XDEC carries a full E-class headphone driver lineup with common impedances of 16Ω / 24Ω / 32Ω / 64Ω / 150Ω available. Sensitivity can also be tuned to your enclosure and target SPL - 10000 pcs MOQ for full custom.
Q4: Is this driver suitable for gaming headsets or esports headphones?
A: Absolutely. 107dB high sensitivity helps gamers pick up subtle in-game audio cues (footsteps, gunshots), and 32Ω impedance matches well with PS5, Xbox, Switch, and PC sources. For signature tuning (e.g. bass-boosted), our engineering team can advise on damping and enclosure options.
Q5: Can you provide datasheet, test reports, and samples?
A: Yes - datasheet, dimension drawing, frequency response curve, and reliability test report (load / high-temp / low-temp / humidity) are all available on request. Email xd12@xdec.cn for samples (24h reply) or call our sales director +86 13620938545.
Need 40mm Headphone Driver Samples or Custom Build?
Shenzhen Xuanda Electronics Co., Ltd. · 17 Years Professional Speaker Manufacturer · Export to 30+ Countries
Solution within 24h · Datasheet review within 48h · Stock ships in 3-5 days · Custom builds in 15-20 days
