Description
Technical Parameters

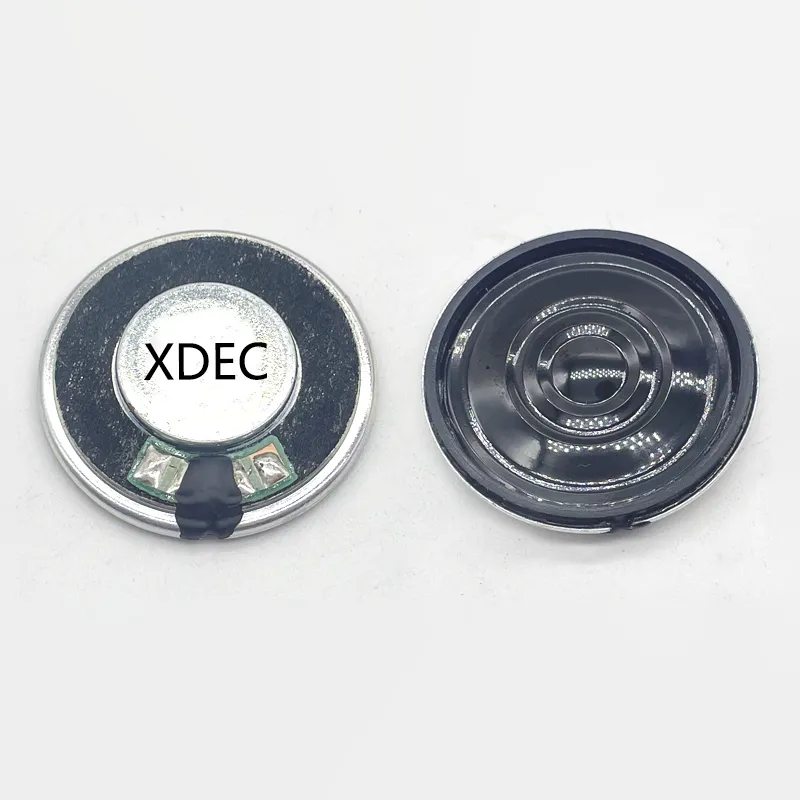

Φ30mm × 4.6Hmm (Round) Round Full-Range Speaker Driver
32Ω ± 15% | 0.25W | 90dB ± 3dB
Model: XDEC-30M32T14NJ24 | 17 Years Professional Manufacturer | ISO9001 Certified
Free Samples Available | OEM/ODM Customization
Can't Find the Right Speaker Driver Supplier?
❌ Industry Pain Points
|
✅ XDEC Solutions
|
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XDEC-30M32T14NJ24 |
| Size | Φ30mm × 4.6Hmm (Round) |
| Impedance | 32Ω ± 15% |
| Rated Power | 0.25W |
| Max Power | 0.5W |
| Sensitivity | 90dB ± 3dB |
| F0 (Resonance) | 530Hz |
| Freq Response | F0 ~ 15KHz |
| Distortion | ≤ 5% |
| Polarity | + (Red wire = positive) |
| Load Test | Normal after 48hr white noise |
| High Temp Test | +60℃ |
| Low Temp Test | －25℃ |
| Humidity Test | +40℃ / 90~95%R.H. |
| Storage Temp | －25℃ ~ +70℃ |
Dimension Diagram & Frequency Response
Standard product sample images. Actual dimensions per specifications.
📌 Dimension Diagram
Φ30mm × 4.6Hmm (Round)
Unit: mm | Tolerances per spec sheet
📊 Frequency Response
530Hz | 90dB ± 3dB
Actual curves vary by mounting conditions
