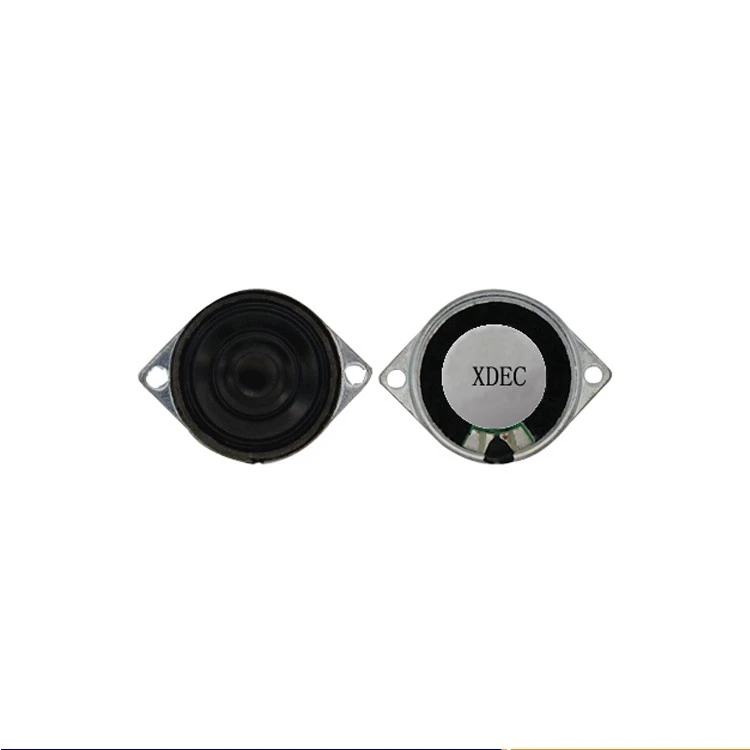

Φ28mm 8Ω 2W Mylar Speaker Driver
96±3dB High SPL · For Video Doorbell & Intercom
Why Choose XDEC Mylar Speaker Driver?
❌ Common Doorbell/Intercom Driver Pain Points
- Low SPL, inaudible in noisy outdoor environments
- Small enclosure causes distortion and buzzing at prompt tones
- Prolonged doorbell ringing overheats the driver, parameter drift
- Poor moisture resistance, short outdoor lifespan
- Inconsistent unit-to-unit performance, unstable yield
✓ XDEC Solution
- 96±3dB high SPL, penetrates noisy outdoor environments
- 2W rated / 2.5W peak power, clear prompt tone without buzzing
- -25℃~+60℃ wide temperature range, stable for outdoor doorbells
- 17 years of professional speaker driver manufacturing (XDEC since 2009)
- ISO9001 / IATF16949 / TUV triple international certification
- OEM/ODM customization (sensitivity / impedance / cable)
Product Visuals

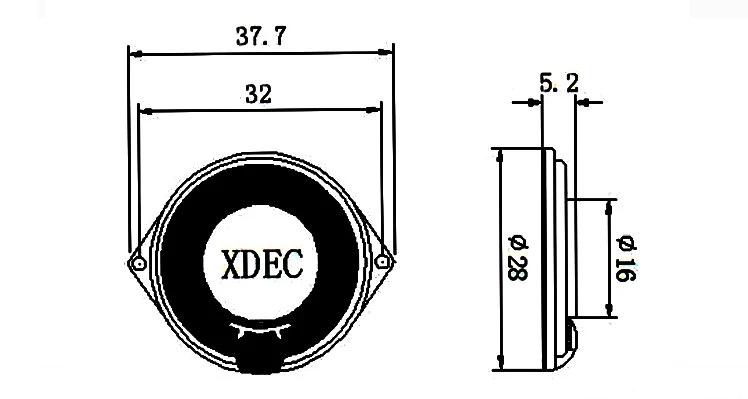

Dimension Drawing / 尺寸图

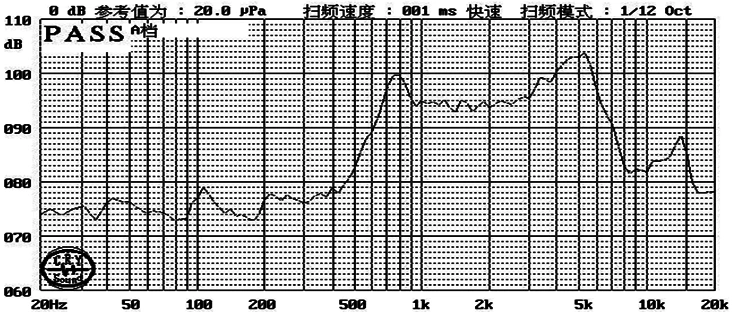

Frequency Response / 频响曲线
Complete Specifications
| Model | XDEC-28M08T14NL13-D175 |
| Type | Mylar Speaker Driver (M-class) |
| Size | 28mm (28*5.2Hmm) |
| Impedance | 8 Ohm |
| Rated Power | 2.0W |
| Max Power | 2.5W |
| Resonance Freq | 840Hz |
| Sensitivity | 96±3dB |
| Frequency Range | F0~20K |
| Distortion | 5%Max |
Application Scenarios
- Smart video doorbells / wireless doorbells
- Video intercoms / building intercom stations
- Smart door locks / fingerprint lock prompt tones
- AI voice modules / offline voice recognition prompts
- Security alarms / smoke detector buzzer units
- Educational toys / learning machines / story players
Frequently Asked Questions
Q: Is 28mm 8Ω 2W mylar driver loud enough for a video doorbell?
A: Yes. With 96±3dB sensitivity and 2W rated power, the SPL measured at 1 meter outdoors exceeds 95dB, easily cutting through residential street noise. The 2.5W short-term peak handles long-press doorbell ringing scenarios without distortion.
Q: What is the MOQ for 28mm mylar speaker driver?
A: Standard MOQ is 3,000 units. Trial orders start from 500 units. Custom specs start from 10,000 units. XDEC provides direct factory quotes (17+ years manufacturer), with sample plans replied within 24 hours.
Q: Can this 28mm driver work in smart door lock applications?
A: Absolutely. The 28*5.2Hmm compact form fits door lock PCB enclosures; 840Hz resonance avoids the lock body resonance peak; 96dB high sensitivity ensures clear prompt tones even at low drive voltage. Already in mass production for several leading smart lock brands in China.
Q: Does this driver support OEM/ODM customization?
A: Yes. Customizable sensitivity (85-98dB range), impedance (4/8/16/32Ω), cable length (30-200mm), and connector type. Custom MOQ 10,000 units. Sample 15-20 days, mass production 30+ days.
Related Searches
Contact Information
📧 Email: xd12@xdec.cn
📞 Tel: 0755-27739805
👤 Manager Yuan: 13528883307
🌐 Web: www.xdecspeakerdriver.com
About XDEC
Shenzhen Xuanda Electronics Co., Ltd. (XDEC), founded in 2009, is an international manufacturer with 17 years of expertise in R&D, production, and sales of speaker driver units. Monthly capacity 5M+ units, 5000+ SKUs, exported to 30+ countries.
