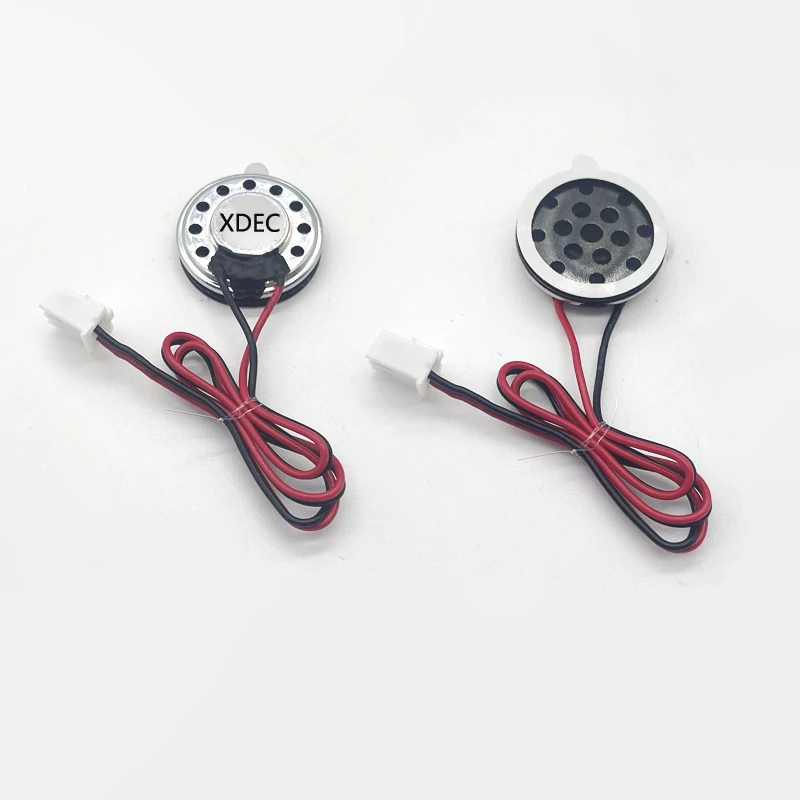

20mm 8Ω 1W Mini Mylar Speaker
91dB High SPL for Smart Devices
Why OEMs Switch to 20mm Mylar Speakers for Compact Devices
Traditional paper-cone micro speakers are bulky, low-SPL, and inconsistent in batch - the mylar diaphragm approach solves all three.
❌ Common 20mm Speaker Pain Points
- SPL below 85dB - alerts get lost in noisy rooms
- THD above 10% - voice prompts sound muffled
- Poor batch consistency - L/R pairing problems
- Weak low-frequency - toy sound effects feel thin
- No vibration tolerance - outdoor doorbells fail fast
- Unstable lead times - supply chain breaks in peak season
✓ XDEC 20mm Mylar Speaker Solution
- 91±3dB high sensitivity - clear alerts across the room
- ≤5% THD - natural voice reproduction
- F0=940Hz - full-bodied mid-low response
- F0~20KHz - covers both voice and music bandwidth
- -25~+60°C rated - survives outdoor doorbell environments
- 50M monthly capacity - 15-day lead time guaranteed
Technical Specifications
All data captured from factory acceptance test, with shipment report per batch.
| Parameter | Specification | Note |
|---|---|---|
| Model | XDEC-20M08T13NK14 | M-Series 20mm Mylar Speaker |
| Type | M-Series Mylar Cone Speaker (Dynamic) | Round / Moving-coil |
| Outer Dimension | 20mm × 5.1H mm (Round) | Slim profile |
| Impedance | 8 Ω ±15% | Standard consumer amp |
| Rated Power | 1.0W | Continuous operation |
| Max Power | 1.5W | Peak without damage |
| Resonant Frequency (F0) | 940Hz ±20% | Mid-low band |
| Sensitivity (SPL) | 91 ± 3 dB | @1W / 1m |
| Frequency Range | F0 ~ 20KHz | Full-range coverage |
| Distortion (THD) | ≤ 5% Max | @1W 1kHz |
| Polarity | + (Positive) | Red wire positive |
| Operating Temperature | -25°C ~ +60°C | - |
| Storage Temperature | -25°C ~ +60°C | - |
| Load Test | Normal after 24hr white noise | 100% factory tested |
Dimension Drawing & Frequency Response

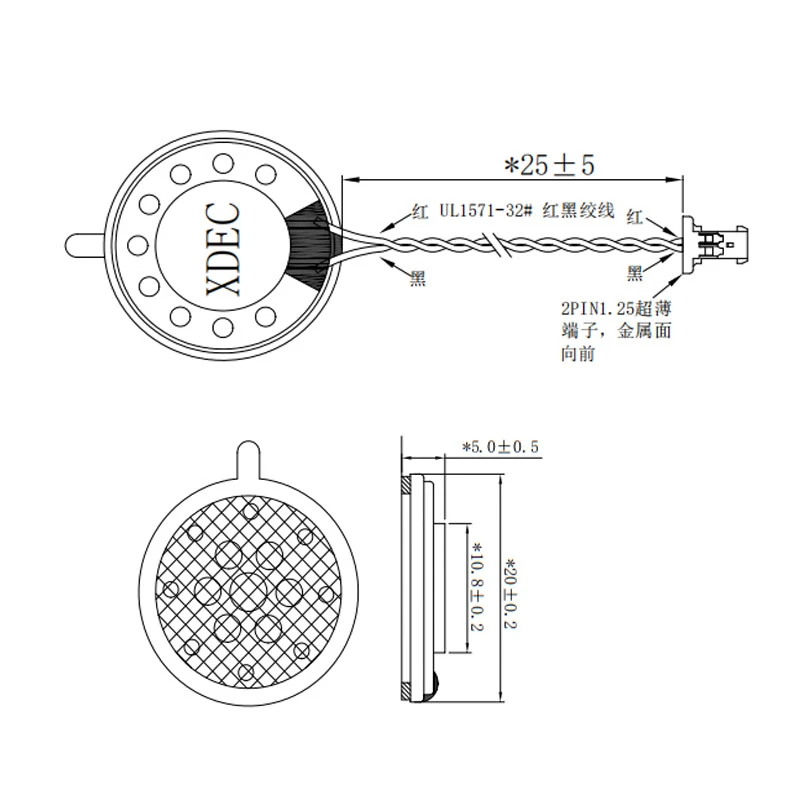

Dimension Drawing
OD 20mm × 5.1mm thin - round profile

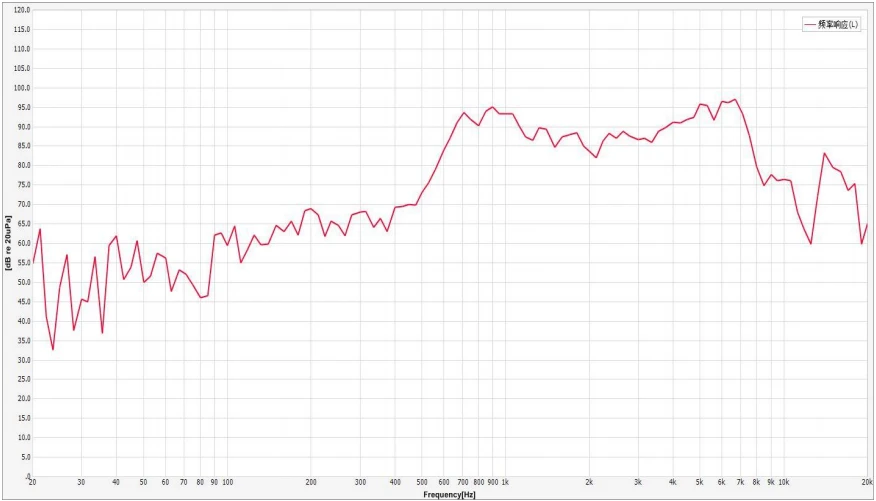

Frequency Response Curve
F0=940Hz, F0~20KHz smooth full-range
Five Engineering Advantages of the 20mm Mylar Speaker
From diaphragm material to assembly process, every detail is optimized for consumer electronics.
91dB High SPL Output
Industry-leading sensitivity in this size class - 1W input delivers room-filling sound for doorbell, alarm, and voice prompt applications.
20mm Ultra-Slim Form Factor
20×5.1H mm compact body fits into tight enclosures - wearable devices, handheld gadgets, and ultra-thin smart products.
F0=940Hz Full-Bodied Mid-Low
F0 reaches down to 940Hz - toy sound effects, learning tablet voice, and electronic piano tone all sound warm and full.
-25~+60°C Wide-Temp Rated
Thermal-shock tested for outdoor doorbell, vehicle-mounted alert, and cold-climate installations - works year-round.
Tight Batch Consistency
Fully automated production line + 100% electro-acoustic test - inter-batch SPL deviation stays within ±3dB for predictable integration.
8Ω Standard Impedance
Standard 8Ω voice coil - no exotic amplifier IC required, plugs directly into mainstream consumer MCUs and audio SoCs.
Typical Applications for the 20mm Mylar Speaker Driver
Spanning consumer electronics, kids' education, smart home, medical devices, and industrial instrumentation.
Smart Doorbell & Access
Video doorbell / smart peephole / intercom
Kids' Toys & Sound Books
Plush toys / story players / sound books
Learning Tablets & Pens
Reading pen / study machine / early education
Alarm Sounder & Buzzer
Smoke detector / intrusion alert / fault sounder
Medical & Wellness Devices
Blood pressure monitor / massager / glucometer
Smart Home Voice Prompt
Voice assistant / smart speaker / IoT notifier
Industrial Instruments
Test equipment / PLC / POS terminal
Small Home Appliance
Rice cooker / microwave / smart toilet
MOQ & Lead Time
Three flexible MOQ tiers - from prototype to mass production.
Certifications & Manufacturing Capability
ISO 9001:2015
Quality management system
IATF 16949
Automotive-grade certified
50M units / month
Scale manufacturing
15-day fast lead time
On-time delivery
30+ countries
Globally trusted OEM
Frequently Asked Questions
Q1: Is this 20mm mylar speaker suitable for a smart doorbell?
A: Absolutely. 91±3dB SPL keeps the doorbell chime audible from 10+ meters away, 8Ω impedance matches mainstream doorbell controller boards, F0=940Hz gives the alert tone strong recognizability, and -25~+60°C rating handles outdoor winter and summer conditions without issue.
Q2: What is the MOQ and lead time for custom orders?
A: Prototype starts at 500 pcs, standard production at 3,000 pcs, ODM customization at 10,000 pcs. Standard SKUs ship in 3–5 days, regular production in 5–7 days, and ODM projects in 15–20 days. With 50M units monthly capacity, we keep peak-season supply stable.
Q3: How does a 20mm speaker compare to 23mm or 28mm in the same family?
A: The 20mm with 5.1mm thickness is the slimmest option, ideal for ultra-compact enclosures. Its higher F0=940Hz makes voice prompts sound especially crisp. The 23mm and 28mm options have thicker cones and lower F0, delivering warmer bass - choose by enclosure depth and target sound character.
Q4: Can you provide test reports (EMC, reliability, RoHS)?
A: Yes. Every batch ships with a factory load test, thermal-shock, and humidity report. We are ISO 9001 certified, and we support third-party lab verification (SGS, TUV) when required by your regulatory team.
Q5: Do you support OEM/ODM - can we customize wire, connector, impedance?
A: Yes. From 10,000 pcs we offer: diaphragm material, impedance (4Ω/8Ω/16Ω/32Ω), sensitivity bin, wire length, connector type (PH 2.0 / XH 2.54 / JST / Molex), housing color, and printed logo. Engineering selection guidance within 24 hours, datasheet review within 48 hours.
Q6: Is pricing competitive vs. other Asian manufacturers?
A: As a 17-year direct factory with automated lines and centralized raw-material sourcing, we typically price 10–20% below trading companies. Three MOQ tiers give you step-volume pricing. Free samples available - drop your inquiry and we'll arrange shipment within 48 hours.
