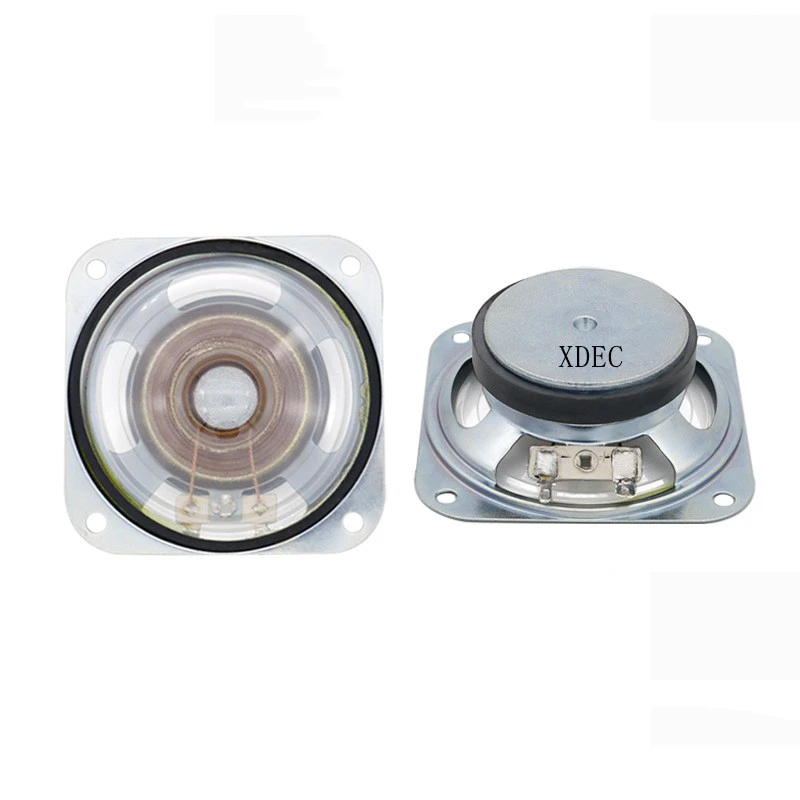

88mm (3.5 inch) Full Range Speaker Driver
Home Audio & Professional Speaker Application
Why Choose XDEC Full Range Speaker Driver?
❌ Traditional Speaker Pain Points
- Weak bass, thin sound quality
- Insufficient power, limited volume
- Low sensitivity, hard to drive
- Poor workmanship, short lifespan
- Slow delivery, unstable supply
✓ XDEC Solution
- F0 down to 300Hz for deeper bass
- 15W rated power, 20W peak
- 89dB high sensitivity, easy to drive
- 17 years experience, ISO9001 certified
- 3-5 days lead time for standard items
Product Specifications
| Parameter | Specification |
|---|---|
| Model | XDEC-88W08T20NH20 |
| Type | External Magnet Full Range Speaker Driver (W Type) |
| Size | Φ88mm (3.5 inch) × 31.7mm (Square) |
| Impedance | 8Ω ±15% |
| Rated Power | 15W |
| Max Power | 20W |
| Sensitivity | 89±3dB (1W/0.5M) |
| Resonance Frequency | 300Hz ±20% |
| Frequency Response | F0 ~ 7kHz |
| Distortion | ≤5% |
| Polarity | + (Positive) |
| Operating Temperature | -25℃ ~ +60℃ |
| Load Test | Normal after 96 hours white noise test |
| Storage Temperature | -25℃ ~ +60℃ |
Dimensions & Frequency Response
Dimension Drawing
Frequency Response Curve
Optimized for Home Audio & Professional Speakers
89dB High Sensitivity
High sensitivity design, easy to drive, more flexible amplifier matching
88mm Compact Square Design
88×88mm compact size, 31.7mm ultra-thin, easy to embed and install
F0~7kHz Wide Frequency Response
Balanced full-band performance, clear vocals, powerful bass
Wide Temperature Range
-25℃~+60℃ operating temperature, suitable for various environments
17 Years Professional Manufacturing
ISO9001 certified factory, 50M units monthly capacity, stable supply
Typical Applications
Home Audio
Desktop Speakers, Home Theater
Professional Speakers
Conference Room, Background Music
Desktop HiFi
Computer Speakers, Amp Combos
Soundbar
TV Soundbar, Home Theater
XDEC vs Competitors
| Comparison | XDEC 88mm Full Range Driver | Industry Standard |
|---|---|---|
| Sensitivity | 89dB High Sensitivity | 82-86dB |
| Frequency Response | F0~7kHz Wide Range | F0~5kHz |
| Resonance Frequency | 300Hz Low Resonance | 350-400Hz |
| Power Efficiency | 15W Rated / 20W Peak | 10W/15W |
| Certification | ISO9001 Certified | No Certification |
Quality Certification & Factory Strength
ISO9001 Certified
Quality Management System
50M Units/Month
Mass Production Capacity
3-5 Days Lead Time
Fast Delivery for Standard Items
OEM/ODM Custom
Personalized Development Support
Frequently Asked Questions
Q1: What applications is this 88mm full range speaker driver suitable for?
A: The 88mm external magnet full range speaker driver is specifically designed for home audio systems, professional speakers, desktop HiFi, Soundbar and other applications. With 8Ω impedance, 15W rated power, and 89dB high sensitivity, it can directly match most amplifiers and playback devices. This is an ideal speaker driver unit (semi-finished component) for OEM assembly.
Q2: What is the MOQ?
A: MOQ is 3000 pieces. For pilot production, we accept 500 pieces for small batch trial production, suitable for early product verification stage. We also offer OEM and ODM services for custom specifications.
Q3: What is the lead time?
A: Sample lead time is 3-5 days, mass production lead time is 7-15 days. We have a mass production capacity of 50 million units per month, ensuring on-time delivery. Custom sizes and specifications are available with competitive lead times.
Q4: What custom services do you support?
A: We support customization of impedance, power, frequency response and other parameters. 1-4 free samples are provided for testing. As a 17-year professional speaker driver manufacturer with ISO9001 certification, we offer full-process OEM/ODM services. Contact us for a datasheet and custom quote.
