50mm 8ohm 5w waterproof Mylar cone speaker
NO. XDEC-50Y08T24NA22
Speaker Driver Product Introduction
This is a 50mm round waterproof mid-range speaker with a transparent PET Mylar cone, specially designed for harsh outdoor environments with excellent waterproof and weather-resistant performance. Equipped with a 13-core KSV voice coil and dual high-performance neodymium magnets, it provides strong magnetic circuit and stable driving force. The speaker has an impedance of 8Ω, rated power of 5W, and maximum power of 6W, with a total height of 21.5mm.Its resonance frequency Fo is 950Hz, and the effective frequency response ranges from 950Hz to 7kHz, delivering outstanding mid-range performance, clear human voice, and strong penetrating warning sound. Featuring good shock resistance, waterproofing and durability, it is widely used in outdoor alarms, security devices, electric vehicle warning systems and outdoor audio equipment, making it an ideal solution for mid-range warning and outdoor sound amplification.

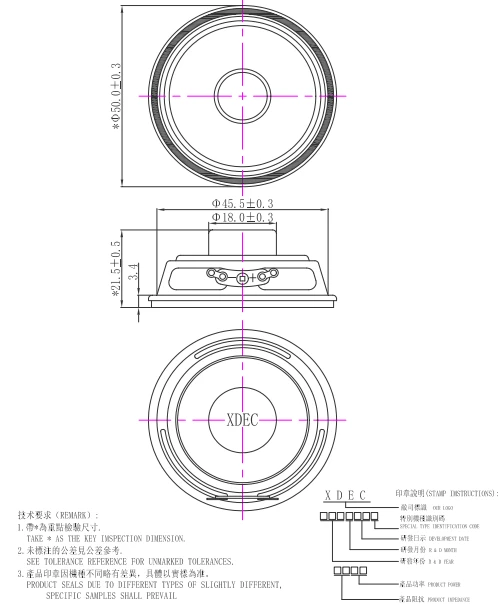

Dimension Diagram
50mm 8ohm 5w 13mm core double Magnet Speaker Driver Dimension Diagram, This dimension diagram provides a comprehensive overview of the physical attributes and specifications of the speaker, aiding in its proper installation and integration into Audio Device designs.

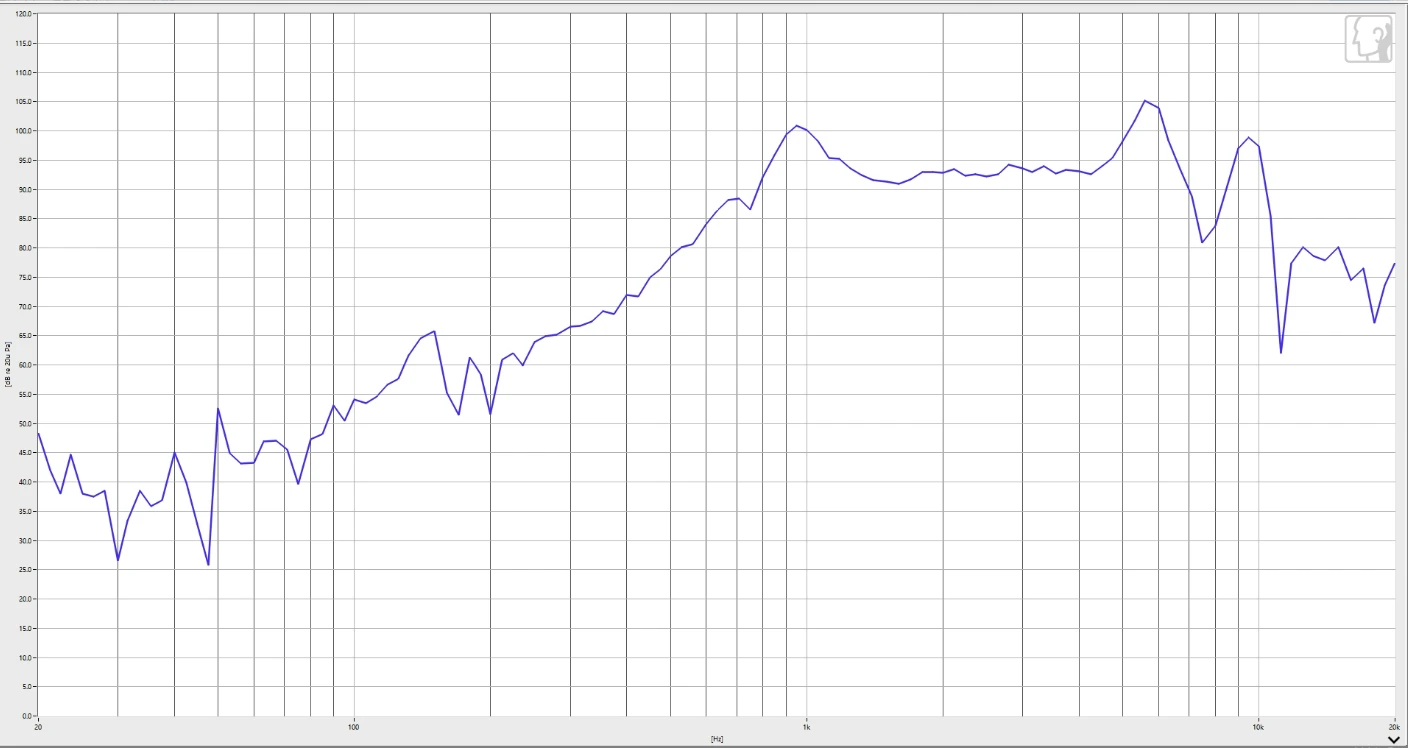

Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
|
NO. |
Item |
Specification |
Condition |
|
|
1 |
Dim |
Φ50*21.5H mm |
||
|
2 |
Anomia Impedance |
8±15% OHM |
At 1500Hz / 1.0V |
|
|
3 |
Input power |
Rated:5W/ Max:6W |
At6.32 V 6.92V |
|
|
4 |
Resonance Frequency |
950±20%Hz |
At 1.0V |
|
|
5 |
S．P．L． |
94±3 dB(1W/0.5M) |
At1000/1500/2000/3000Hz (Average)
|
|
|
6 |
Frequencies Range |
F0~7KHz
|
Output S.P.L. -10dB
|
|
|
7 |
Distortion |
10%Max |
At 1.0KHz 1W/0.5M
|
|
|
8 |
Buzz & Rattle |
Not be audible sine wave between at6.32V /F0~7KHz.
|
||
|
9 |
Polarity |
Diaphragm shall move forward. |
||
|
10 |
Load test |
Must be normal after load test:white noise 24 hours. |
||
|
11 |
High TEMP test |
After having been in a test chamber for 48 hours at the condition of +60℃ 20~25%R.H and keep 2 hours |
||
Product Applications
Intercom
Experience crystal-clear communication with our 50mm 8ohm 5w Speake. Our precision-engineered driver ensures superior sound quality for intercom systems, capturing every detail and providing a clear and reliable audio environment for seamless communication.
Learning Device
Learn with clarity and precision using our 50mm 8ohm 5w Speaker Driver. Our high-fidelity driver reproduces audio signals with accuracy, providing a rich and immersive listening experience for educational devices and enhancing the learning process.
Reading Pen
Discover the joy of reading with our 50mm 8ohm 5w Speake. Our compact and efficient driver brings text-to-speech technology to life, providing a clear and natural-sounding voice output that enhances the reading experience.
Electric Toy
Play with excitement and clarity using our 50mm 8ohm 5w Speake. Our durable and reliable driver brings games and interactive experiences to life, providing a rich and engaging audio environment that immerses children in their play.
