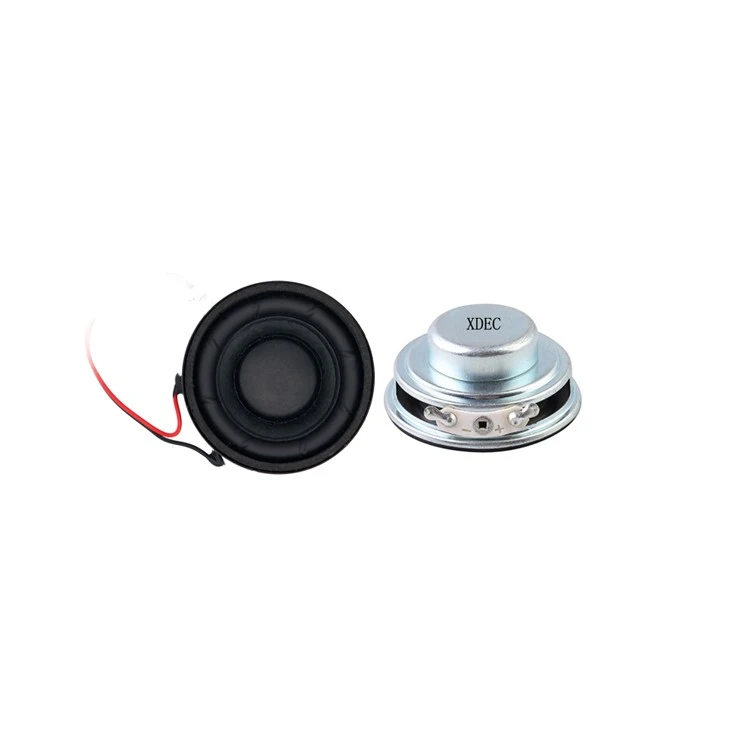

Φ40mm (1.57") × 23Hmm Internal Magnet Speaker Driver
Smart Speaker / Bluetooth Speaker Application
Why Choose XDEC Multimedia Speaker Driver?
❌ Traditional Speaker Pain Points
- Limited enclosure space, insufficient volume
- Unclear voice interaction
- Weak bass performance, poor music experience
- High power consumption, affecting battery life
- Unstable quality, many after-sales issues
✓ XDEC Solution
- Compact elliptical design saves enclosure space
- 93dB high sensitivity for clear voice interaction
- F0 down to 210Hz for deeper bass
- 3W low power consumption for long operation
- 17 years professional quality, ISO certified
Product Specifications
| Parameter | Specification |
|---|---|
| Model | XDEC-40Y04T13NF10 |
| Type | Internal Magnet Multimedia Speaker Driver (Y Type) |
| Size | Φ40mm × 23Hmm (Elliptical) |
| Impedance | 4Ω ±15% |
| Rated Power | 3W |
| Max Power | 4W |
| Sensitivity | 93±3dB (0.5W/0.5M) |
| Resonance Frequency | 210Hz ±20% |
| Frequency Response | F0 ~ 19kHz |
| Distortion | ≤5% |
| Polarity | + (Positive) |
| Operating Temperature | -25℃ ~ +60℃ |
| Load Test | Normal after 24h white noise test |
| Storage Temperature | -25℃ ~ +60℃ |
Dimensions & Frequency Response

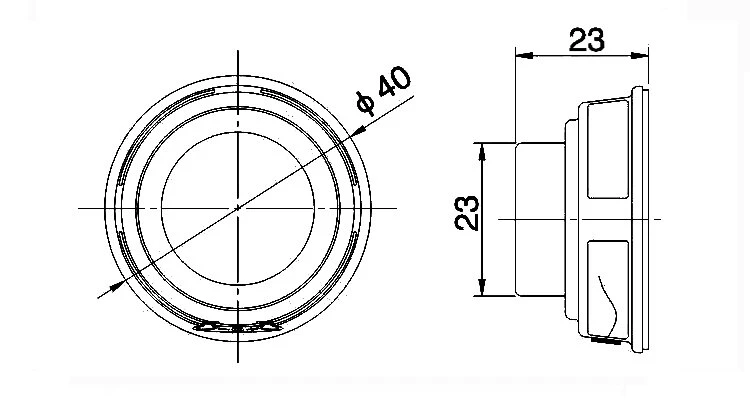

Dimension Drawing

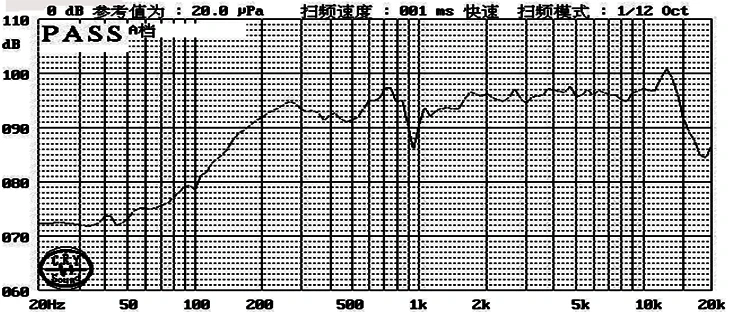

Frequency Response Curve
Optimized for Smart Speakers
93dB High Sensitivity
Clearer voice interaction, sensitive far-field wake-up, improved user experience
Compact Elliptical Design
Φ40mm compact size, easily fits various smart speaker enclosures
F0~19kHz Wide Frequency Response
Clear vocals, balanced music, suitable for voice assistant and music playback
Wide Temperature Range
-25℃~+60℃ operating temperature, suitable for various environments
17 Years Professional Manufacturing
ISO9001 certified factory, 50M units/month capacity, stable supply guaranteed
Typical Applications
Smart Speakers (Main)
Voice interaction, music playback
Bluetooth Speakers
Portable audio, outdoor speakers
Soundbar
TV soundbar, home theater
Smart Home
Voice control, smart hub
Educational Robots
Children education, AI assistant
XDEC vs Competitors
| Comparison | XDEC 40mm Speaker Driver | Industry Standard |
|---|---|---|
| Sensitivity | 93dB High Sensitivity | 72-85dB |
| Frequency Response | F0~19kHz Wide Range | F0~15kHz |
| Resonance Frequency | 210Hz Low F0 | 250-350Hz |
| Power Efficiency | 3W Low Power Design | 2W |
| Quality Certification | ISO9001 Certified | No Certification |
Quality Certifications & Factory Strength
ISO9001 Certified
Quality Management System
50M Units/Month
Mass Production Capacity
7-15 Days Lead Time
Fast response, on-time delivery
OEM/ODM Custom
Personalized development support
Frequently Asked Questions
Q1: How does the 40mm internal magnet speaker driver perform in smart speakers?
A: The Φ40mm × 23Hmm internal magnet multimedia speaker driver is specifically optimized for smart speakers. 93dB high sensitivity ensures clear voice interaction, F0~19kHz wide frequency response meets both voice assistant and music playback needs. Compact elliptical size easily fits various speaker enclosure structures.
Q2: What is the MOQ?
A: MOQ is 3,000 units. Trial production with 500 units is available for product verification stage. We also offer OEM/ODM services for custom requirements.
Q3: What is the lead time?
A: Sample lead time is 3-5 days, mass production lead time is 7-15 days. We have a mass production capacity of 50 million units per month.
Q4: What customization services are available?
A: We support customization of impedance, power, frequency response and other parameters. 1-4 free samples are provided for testing. XDEC - 17 years professional speaker manufacturer, ISO9001 certified, full OEM/ODM service. Check our datasheet for detailed specifications.
