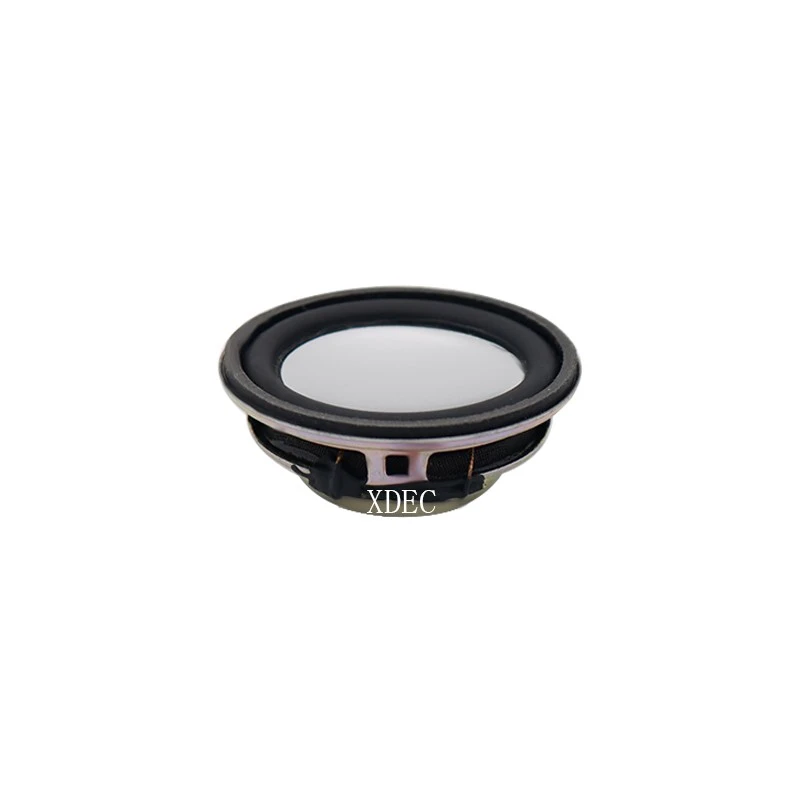

36mm Multimedia Speaker Driver | Soundbar Application
8Ω Impedance | 85dB High Sensitivity | 310Hz Low Resonance
Soundbar Key Pain Points & XDEC Solutions
❌ Common Challenges with Traditional Drivers
- Flat chassis design, standard drivers won't fit
- Need small size but high volume & clarity
- Voice dialogue must be clear, music layered
- Weak bass, thin overall sound
✓ XDEC Solutions
- 36mm×20Hmm ultra-slim round design, perfect for flat Soundbar enclosures
- 85dB high sensitivity, big volume with low power drive
- 310Hz low resonance frequency, clear voice dialogue
- Internal magnet compact structure for slimmer profile
Product Specifications
| Parameter | Specification |
|---|---|
| Model | XDEC-36Y08T20NJ21 |
| Dimensions | Φ36mm × 20Hmm (Round) |
| Impedance | 8Ω |
| Resonance Frequency | 310Hz |
| Sensitivity | 85dB |
| Driver Type | Internal Magnet Multimedia Speaker Driver |
| Magnet System | Internal Magnet |
| Diaphragm Material | Paper Cone + Cloth Edge |
| Basket Material | SPCC Iron Frame |
| Operating Temp Range | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Service Life | 100,000+ cycles |
| Environmental Standards | RoHS / REACH Compliant |
| MOQ | 3,000 pcs |
Dimension Drawing & Frequency Response Curve
Product Dimension Drawing
Frequency Response Curve
Why Choose XDEC 36mm Multimedia Speaker Driver?
High Sensitivity Design
85dB high sensitivity delivers big volume with low power drive, perfect for Soundbar low-power requirements with clearer voice interaction
Ultra-Slim Compact Structure
36mm×20Hmm ultra-slim round design fits perfectly into Soundbar flat enclosures, saving internal space
Wide Frequency Response
310Hz low resonance for clear voice dialogue and layered music, balancing voice interaction with cinema-grade audio experience
Wide Temperature Range
-20°C ~ +60°C operating temperature range adapts to various indoor environments with stable, reliable performance
17 Years Professional Manufacturing
Xuanda Electronics (XDEC) - 260+ million units sold, trusted quality with reliable supply
Typical Application Scenarios
36mm Multimedia Speaker Driver widely used in the following fields
Soundbar
Primary Application · Perfect Fit
Home Theater
Cinema-Grade Audio
Car Audio
In-Vehicle Multimedia
Bluetooth Speaker
Portable Audio Device
Gaming Console
Immersive Gaming Experience
Desktop Speaker
Multimedia Entertainment
XDEC vs Industry Standard Comparison
| Comparison Item | XDEC 36mm Driver | Industry Standard |
|---|---|---|
| Sensitivity | 85dB (High Sensitivity) | 75~80dB (Standard) |
| Structure Design | Internal Magnet Compact | External Magnet Traditional |
| Height/Thickness | 20Hmm (Ultra-Slim) | 25~30Hmm (Thicker) |
| Resonance Frequency | 310Hz (Low Resonance) | 350~450Hz |
| Manufacturing Experience | 17 Years Professional Speaker Manufacturing | Small Factory / New Entry |
Quality Certification & Factory Strength
ISO9001 Certified
International Quality Management System
5 Million pcs/month
High Capacity for Stable Supply
7-15 Days Lead Time
Fast Response & On-Time Delivery
OEM/ODM Available
Custom Parameters & Appearance
Frequently Asked Questions
Q1: How does this 36mm multimedia speaker driver perform in Soundbars?
36mm×20Hmm internal magnet multimedia speaker driver is specifically designed for Soundbar sound bars, featuring 8Ω impedance, 85dB high sensitivity, and 310Hz low resonance frequency for clear voice dialogue and layered music. The internal magnet compact structure is only 20Hmm thick, perfectly fitting Soundbar flat enclosures - ideal for Soundbar/Home Theater/Desktop speakers.
Q2: What is the MOQ? Can I do small batch trial production?
Standard MOQ is 3,000 pcs. We also support 500 pcs small batch trial production for your performance verification and product adaptation testing before mass production.
Q3: What is the lead time?
Mass production lead time: 7-15 days. Sample lead time: 3-5 days. With our 5 million pcs/month production capacity, we ensure on-time delivery.
Q4: What customization services are available?
We support customization of impedance, power, sensitivity, frequency response range, and appearance options including basket color, wire length, and terminal style. We also provide 1-4 free samples for your testing and evaluation.
Request Free Samples Now
1-4 Free Samples · 3-5 Days Sample Lead Time · 500 pcs Small Batch Trial
📞 13528883307 (Manager Yuan)
📧 xd12@xdec.cn
🌐 www.xdecspeakerdriver.com
Xuanda Electronics (XDEC) · 17 Years of Professional Speaker Manufacturing
