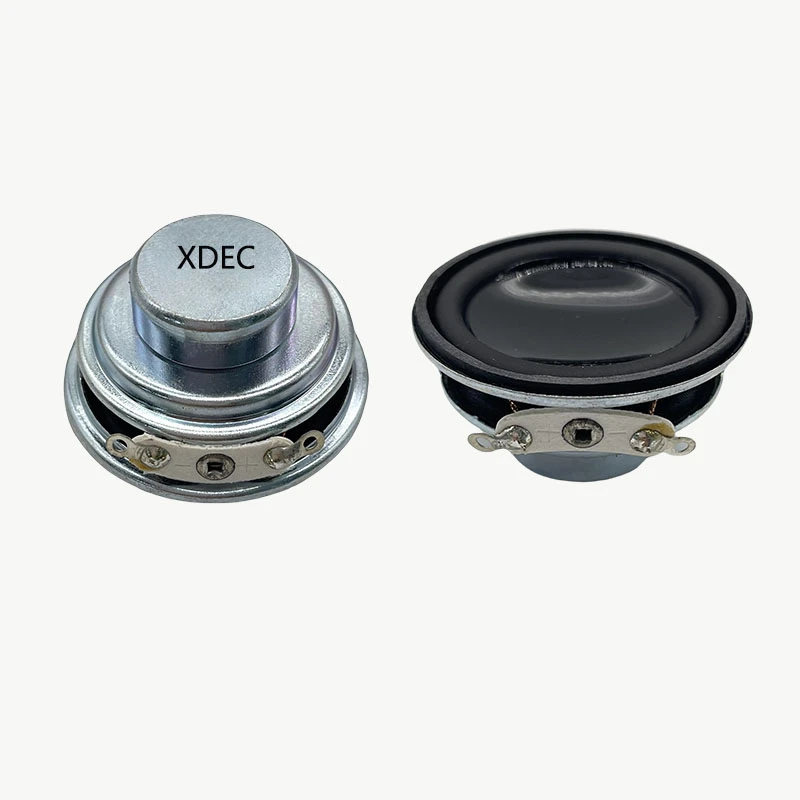

36mm 4ohm 3w Neodymium Multimedia Speaker
NO. XDEC-36Y04T17NE13
Speaker Driver Product Introduction
Elevate your audio experience with our top-tier 36mm dual neodymium inner magnet speaker. This powerhouse is engineered for premium multimedia and full-range applications that demand exceptional sound quality and robust output.
The core dual neodymium magnet motor system delivers an exceptionally strong magnetic flux, providing significantly higher driving efficiency and power handling than standard designs. This results in impressive bass response, rich midrange, and a powerful output of up to 4W peak power with minimal distortion. The glossy black PC dust cap and high-compliance PU surround work together to deliver a wide frequency range with detailed, smooth sound and excellent transient response.
With 4-ohm impedance and 3W rated (4W max) power, it is easily driven by most amplifiers. The 100% inner magnet structure guarantees zero magnetic leakage, making it perfectly safe for use near sensitive displays. It is the ultimate solution for high-end Bluetooth speakers, portable PA systems, professional multimedia audio, car audio upgrades, and smart home hubs. Contact us for samples and a competitive quote!

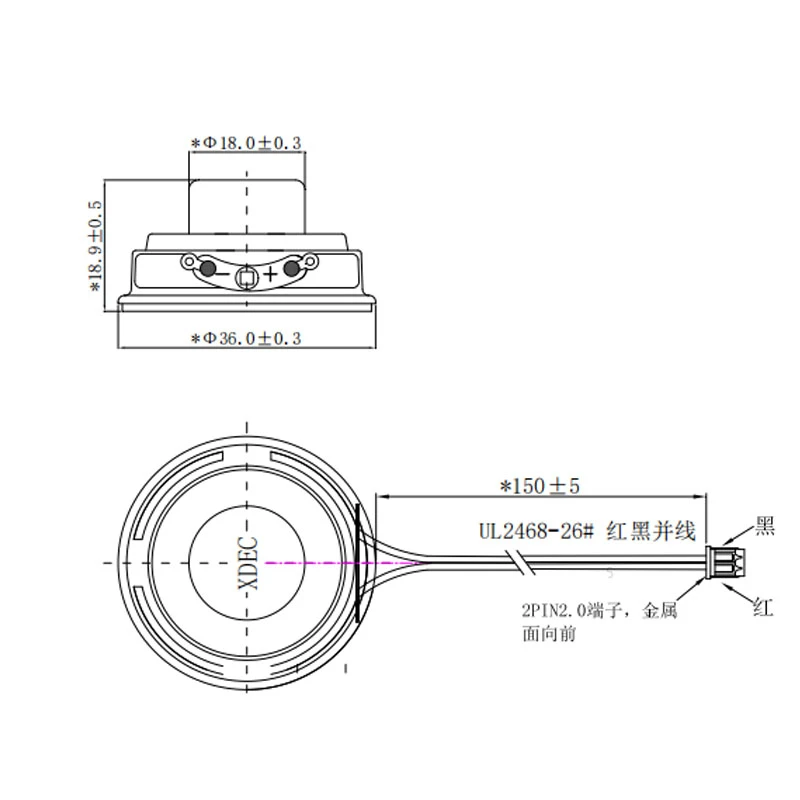

Dimension Diagram
36mm 4ohm 3w Neodymium Multimedia Speaker Dimension Diagram, This dimension diagram provides a comprehensive overview of the physical attributes and specifications of the speaker, aiding in its proper installation and integration into Audio Device designs.

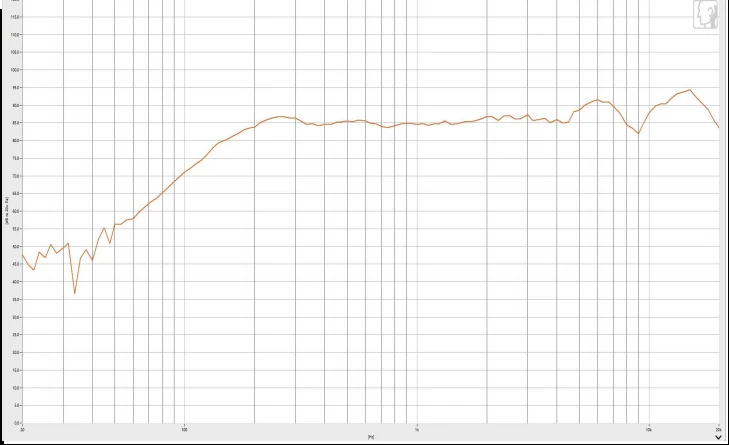

Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
|
NO. |
Item |
Specification |
Condition |
|
|
1 |
Dim |
Φ36*19H mm |
||
|
2 |
Anomia Impedance |
4±15% OHM |
At 600Hz / 1.0V |
|
|
3 |
Input power |
Rated:3W/ Max:4W |
At3.46V 4.47V |
|
|
4 |
Resonance Frequency |
250±20%Hz |
At 1.0V |
|
|
5 |
S．P．L． |
85±3 dB(1W/0.5M) |
At400/600/800/1KHz (Average)
|
|
|
6 |
Frequencies Range |
F0~20K
|
Output S.P.L. -10dB
|
|
|
7 |
Distortion |
10%Max |
At 1.0KHz 1W/0.5M
|
|
|
8 |
Buzz & Rattle |
Not be audible sine wave between at3.46V /200~5KHz.
|
||
|
9 |
Polarity |
Diaphragm shall move forward. |
||
|
10 |
Load test |
Must be normal after load test:white noise 24 hours. |
||
|
11 |
High TEMP test |
After having been in a test chamber for 48 hours at the condition of +60℃ 20~25%R.H and keep 2 hours |
||
Product Applications
Intercom
Experience crystal-clear communication with our 36mm 4ohm 3w Neodymium Multimedia Speaker. Our precision-engineered driver ensures superior sound quality for intercom systems, capturing every detail and providing a clear and reliable audio environment for seamless communication.
Learning Device
Learn with clarity and precision using our 36mm 4ohm 3w Neodymium Multimedia Speaker Our high-fidelity driver reproduces audio signals with accuracy, providing a rich and immersive listening experience for educational devices and enhancing the learning process.
Reading Pen
Discover the joy of reading with our 36mm 4ohm 3w Neodymium Multimedia Speaker. Our compact and efficient driver brings text-to-speech technology to life, providing a clear and natural-sounding voice output that enhances the reading experience.
Electric Toy
Play with excitement and clarity using our 36mm 4ohm 3w Neodymium Multimedia Speaker. Our durable and reliable driver brings games and interactive experiences to life, providing a rich and engaging audio environment that immerses children in their play.
