Item |
Specification |
Condition |
|
|
Dimensions |
Φ36*5.8H mm |
||
|
Nomial Impedance |
8±15% OHM |
At 1.0KHz / 0.89V |
|
|
Input power |
Rated:1.5W/ Max：2.0W |
At 3.46V /4.0V |
|
|
Resonance Frequency |
600±20%Hz |
At 0.89V |
|
|
S．P．L． |
96±3 dB(0.1W/0.1M) |
At0.6K/0.8K/1.0K/1.5KHz(Average) |
|
|
Frepuency Range |
F0~18K |
Output S.P.L. -10dB |
|
|
Distortion |
5%Max |
At 1.0KHz 0.1W/0.1M |
|

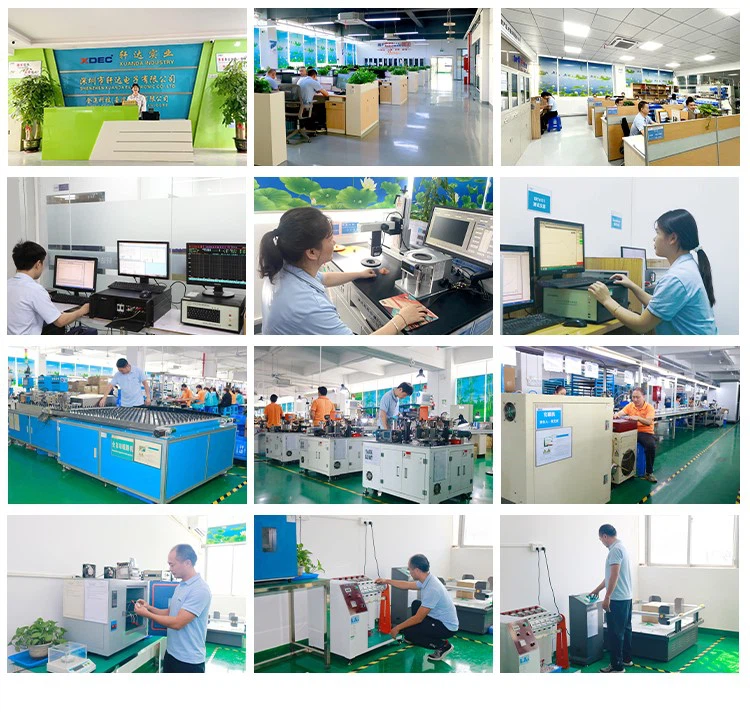

Established in 2009 as a domestic well-known electro-acoustic enterprise, Shenzhen Xuanda
Electronics Co.,Ltd(XDEC) has been specializing in R&D, manufacture and marketing of various
speaker, receiver, microphone and other electro-acoustic products which are widely applied in
Headphones, mobile phones, walkie-talkies, learning machines, point pen, projector,
smart home,laptop, telephone, DVD, TV, navigation, security, cars, audio and other electronic
products and communications equipments.
2015, successfully passed ISO9001:2008 quality management system
2017, won the Shenzhen high-tech Enterprise Certificate
2017, passed the Rhine TUV certification
2018, passed ISO9001:2015 quality management system
2018, gained ISO14001:2015 Environmental Management System Certification
2023, passed IATF16949 automotive industry quality system certification
Q1:Could I have samples for testing first?
A1:Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
Q2:How long is the production lead time/delivery time?
A2:We will send sample to you within 3 days.Production for big quantity needs about 20 days. And it also depends on product and quantity.
Q3:What about terms of payment?
