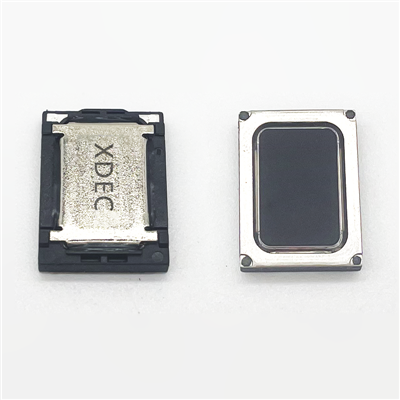

34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories
XDEC-3411B08J24ND09
Speaker Driver Product Introduction
The 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories is a meticulously crafted component designed to produce rich and immersive audio for various devices. Its compact design makes it an ideal choice for smartphones, tablets, laptops, e-readers, and educational devices, delivering clear highs, warm mid-tones, and deep bass. With its versatility and high-fidelity performance, this speaker driver is perfect for demanding applications, ensuring an exceptional audio experience for users.
Dimension Diagram
The 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories Dimension Diagram offers a detailed illustration of the physical characteristics and specifications of the speaker, facilitating its accurate installation and seamless integration into a wide range of Audio Device designs, including smartphones, tablets, laptops, e-readers, and educational devices.
Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
|
NO. |
Item |
Specification |
Condition |
|
|
1 |
Dim |
34mm*11mm*3.2Hmm
|
||
|
2 |
Anomia Impedance |
ACR: 8 Ω±15%
DCR: 7.3Ω±10%
|
AT 2.0K HZ 1.0V
|
|
|
3 |
Input power |
Rated:1.5W/ Max：1.8W
|
At 3.46V /3.8V
|
|
|
4 |
Resonance Frequency |
630±20%Hz
|
At1.0V
|
|
|
5 |
S．P．L． |
84±3 dB(0.1W/0.1M) |
At0.8K 1.0K 1.2K 1.5KHz (Average)
|
|
|
6 |
Frequencies Range |
F0~20K |
Output S.P.L. -10dB
|
|
|
7 |
Distortion |
10%Max |
At 2.0KHz 0.1W/0.1M
|
|
|
8 |
Buzz & Rattle |
ENTER 3.46 V SINE WAVE FROM 430 HZ TO 20 KHZ WITHOUT ABNORMAL SOUND
|
||
|
9 |
Polarity |
Diaphragm shall move forward. |
||
|
10 |
Load test |
Must be normal after load test:white noise 96 hours. |
||
|
11 |
High TEMP test |
After having been in a test chamber for 48 hours at the condition of +60℃ 20~25%R.H and keep 2 hours |
||
Product Applications
Smartphone
In smartphones, the 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories provides crystal-clear audio quality for intercom systems and video calls, ensuring seamless communication for users.
Tablet
In tablets, the 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories delivers rich and immersive audio effects for gaming, video playback, and audio playback, enhancing the overall entertainment experience for users.
E-reader
In e-readers, the 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories provides clear and distinct audio support for students to learn and study more effectively, enhancing their educational experience.
Smartwatch
In smartwatches, the 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories offers compact and clear audio quality for intercom systems, audio notifications, and fitness tracking, improving users' daily efficiency and entertainment experience.
Company Introduction
Founded in 2009, our company is a well-known domestic electroacoustic high-tech enterprise integrating R & D, production and sales. Our products include: speaker drivers, sound receiver, microphones and other electroacoustic products.
Professional team
With our state-of-the-art facilities and experienced team, we offer custom sampling services to meet your unique requirements.
24-hour online communication
Our dedicated professionals are available 24/7 to provide support and ensure a seamless experience throughout the process.
5000m²
Factory area
150+
Factory employee
100+
Precision equipment
100%
Product qualification rate
Why Choose Us?
15 years Industry Experience
With over 15 years in the industry, we bring seasoned expertise in electronic components and speaker products, ensuring top-notch quality and reliability.
Dedicated Workforce
Our team of over 200 skilled employees is committed to excellence, leveraging their expertise to deliver innovative solutions and exceptional customer service.
State-of-the-Art Facilities
Spanning 5000m², our modern manufacturing facility is equipped with cutting-edge technology, enabling efficient production and stringent quality control.
Customized Solutions
We specialize in tailored electronic components and speaker products, offering flexible manufacturing capabilities to meet diverse client needs with precision and efficiency.
Our Service Processes
Our free service hotline:13528883307
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Honor and qualification
Official certification, professional after sales service.
Frequently Asked Questions
What is a 17*10*4.0H Mm 8Ω 0.5W Mobile Phone PCSpeaker Driver?
+
-
A Torus-shaped Driver Speaker is a type of speaker driver that uses a unique torus-shaped diaphragm to produce sound waves. The torus shape allows for a more efficient use of the diaphragm's surface area, which can result in improved sound quality, increased power handling, and reduced distortion.
Could I have samples of Speaker Drivers for testing first?
+
-
Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
How long do Speaker Drivers last?
+
-
The lifespan of a Speaker Driver depends on several factors, including usage, environment, and maintenance. With proper care and maintenance, a Speaker Driver can last for many years.
How do I choose the right speaker driver for my product?
+
-
When choosing a Speaker Driver, consider factors such as the application, size, power handling, frequency response, brand reputation, and price. It's also important to read reviews from other users to get an idea of the performance and reliability of the driver.
What is the minimum order quantity for this 34*11mm 8Ω 1.5W Smart Tablet Device Speaker Accessories?
+
-
Generally, a minimum order of 3000 units is required. Please contact us for further discussion.
