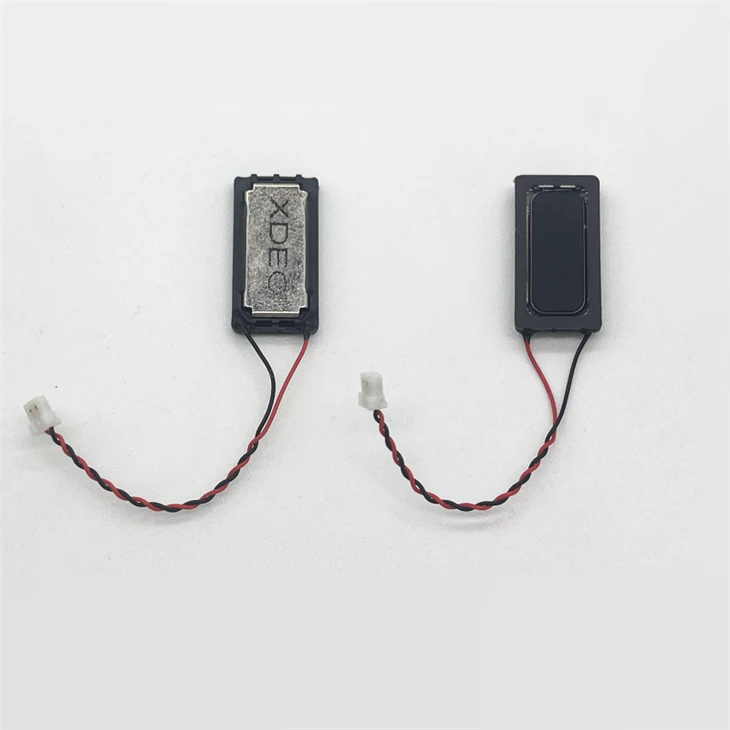

15*8mm 8ohm 0.5w Smart Wearable Speaker with wire
Box Speaker Product Introduction
15*8mm speaker is a dynamic micro speaker,with a front side EVA 0.3mm, speaker itself is 2.7mm, total height is 3mm, also use black cone, a whole piece of high dense flexible cone, make it vibration can has a more same one direction movement, reduce divers movement, it will increase bass effect. speaker also use solder pad , solder with wire on the contact pads,this speaker size is very mini, small, can be using for many mini products, like smart glasses,smart ring, smart GPS callers, smart watch,and other smart wearable products.
Dimension Drawing
This dimension 15mm*8mm*3Hmm provides a super thin size, no thick than 4mm, can make speaker very thin , using in many compact size products, for the assemble we design two sides holes for client products pillar fix or screw fix. we XDEC also design well for the sound cavity for this speaker,save client design time, help client do best in sound performace. for the connection,m we leave a wire come out from cavity for client connect to your board, make the box speaker is much easy for you use !
Speaker Frequency Response Curve
The frequency response curve helps us understand the speaker's performance across different frequencies, in cluding treble,
midrange, and bass. Fluctuations on the curve indicate sound quality in specific ranges. A flatter curve suggests a more balanced output, while larger fluctuations indicate volume changes at certain frequencies.
Product Specifications
|
NO. |
Item |
Specification |
Condition |
|
|
1 |
Dim |
15mm*8mm*3Hmm
|
||
|
2 |
Anomia Impedance |
8±15% OHM |
At 1.0KHz / 0.178V |
|
|
3 |
Input power |
Rated:0.5W/Max:0.8W
|
At 2.0V / 2.53V
|
|
|
4 |
Resonance Frequency |
1200±20%Hz |
At 1.0V
|
|
|
5 |
S．P．L． |
75±3 dB(0.1W/0.1M)
|
At/1.0KHz |
|
|
6 |
Frequencies Range |
F0~20K |
Output S.P.L. -10dB
|
|
|
7 |
Distortion |
10%Max |
At 1.0KHz 1W/10CM
|
|
|
8 |
Buzz & Rattle |
Not be audible sine wave between at 2.0V 1300~5KHz
|
||
|
9 |
Polarity |
Diaphragm shall move forward. |
||
|
10 |
Load test |
Must be normal after load test:white noise 24 hours. |
||
|
11 |
High TEMP test |
After having been in a test chamber for 48 hours at the condition of +60℃ 20~25%R.H and keep 2 hours |
||
Product Applications
gaming headphones
Deliver an immersive gaming experience with our speaker Bluetooth Headphone Speaker Driver. Our precision-engineered driver ensures superior sound quality for gaming headphones, capturing every in-game detail and providing a truly immersive audio environment.
helmet headphones
Integrate our 40*7.2H Mm Bluetooth Headphone speaker driver into helmet headphones for powerful and clear sound, even in noisy environments. This compact unit ensures high-quality audio, perfect for motorcycle helmets or other headgear.
Bluetooth headphones
Enhance your Bluetooth headphones with our 40*7.2H Mm Bluetooth Headphone Speaker Driver, known for balanced sound and strong bass. This driver supports high-fidelity wireless audio, ideal for premium Bluetooth models.
Sports Headphones
Our 40*7.2H Mm Bluetooth Headphone speaker driver is designed for sports headphones, offering durability and sweat resistance. Deliver clear, motivating audio to users during workouts, ensuring resilience and superior sound quality.
Company Introduction
Founded in 2009, our company is a well-known domestic electroacoustic high-tech enterprise integrating R & D, production and sales. Our products include: speaker drivers, sound receiver, microphones and other electroacoustic products.
Professional team
With our state-of-the-art facilities and experienced team, we offer custom sampling services to meet your unique requirements.
24-hour online communication
Our dedicated professionals are available 24/7 to provide support and ensure a seamless experience throughout the process.
5000m²
Factory area
150+
Factory employee
100+
Precision equipment
100%
Product qualification rate
Why Choose Us?
15 years Industry Experience
With over 15 years in the industry, we bring seasoned expertise in electronic components and speaker products, ensuring top-notch quality and reliability.
Dedicated Workforce
Our team of over 200 skilled employees is committed to excellence, leveraging their expertise to deliver innovative solutions and exceptional customer service.
State-of-the-Art Facilities
Spanning 5000m², our modern manufacturing facility is equipped with cutting-edge technology, enabling efficient production and stringent quality control.
Customized Solutions
We specialize in tailored electronic components and speaker products, offering flexible manufacturing capabilities to meet diverse client needs with precision and efficiency.
Our Service Processes
Our free service hotline:13528883307
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of recei
5
>>
After-sale Services
6
Honor and qualification
Official certification, professional after sales service.
Frequently Asked Questions
What is a box Speaker Driver?
+
-
A component that converts electrical signals into sound in headphones.
Could I have samples of box Speaker Drivers for testing first?
+
-
Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.
How long do Headphone Speaker Drivers last?
+
-
The lifespan of a Headphone Speaker Driver depends on several factors, including usage, environment, and maintenance. With proper care and maintenance, a Headphone Speaker Driver can last for many years.
How do I choose the right speaker driver for my headphone product?
+
-
When choosing a Headphone Speaker Driver, consider factors such as the application, size, power handling, frequency response, brand reputation, and price. It's also important to read reviews from other users to get an idea of the performance and reliability of the driver.
What is the minimum order quantity for this box speaker driver?
+
-
Generally, a minimum order of 3000 units is required. Please contact us for further discussion.
